Technical reference

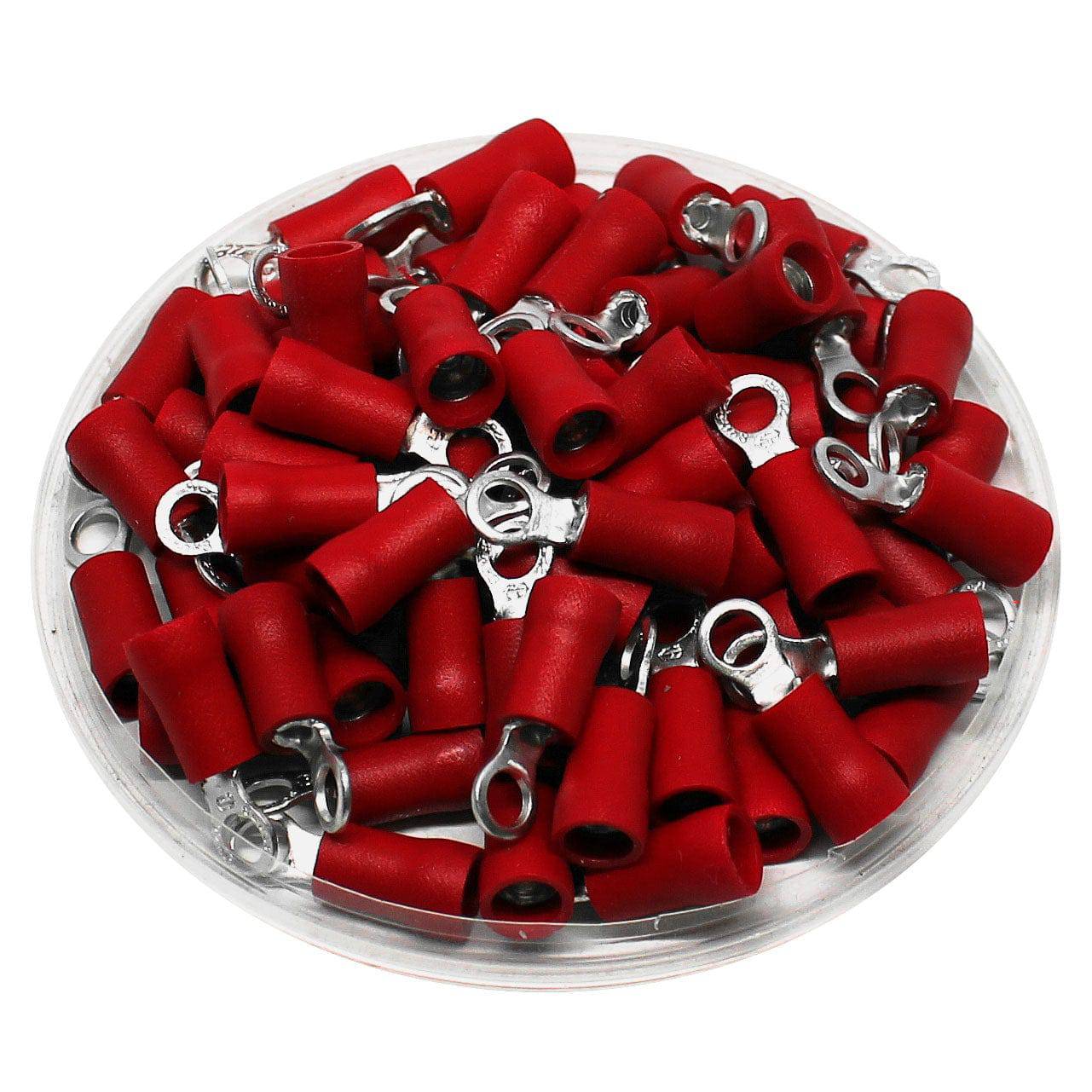

Procurement reference model: RVL1-4. Wire Range: 22-16 AWG; Stud Size: #8; Terminal Material: PVC Vinyl & Tin-Plated Copper. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Range | 22-16 AWG |
| Stud Size | #8 |
| Terminal Material | PVC Vinyl & Tin-Plated Copper |
| Seam | Butted |
| T | 0.75mm (0.03") |
| L | 20.8mm (0.82") |
| F | 7mm (0.28") |
| E | 10mm (0.40") |
| W | 8mm (0.32") |
| D | 4mm (0.16") |
| D1 | 1.7mm (0.07") |
| D2 | 4.3mm (0.17) |
| Temperature Rating | 150°C - 600 Volts |
| Max Electrical Rating | 18 AMP |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
