Technical reference

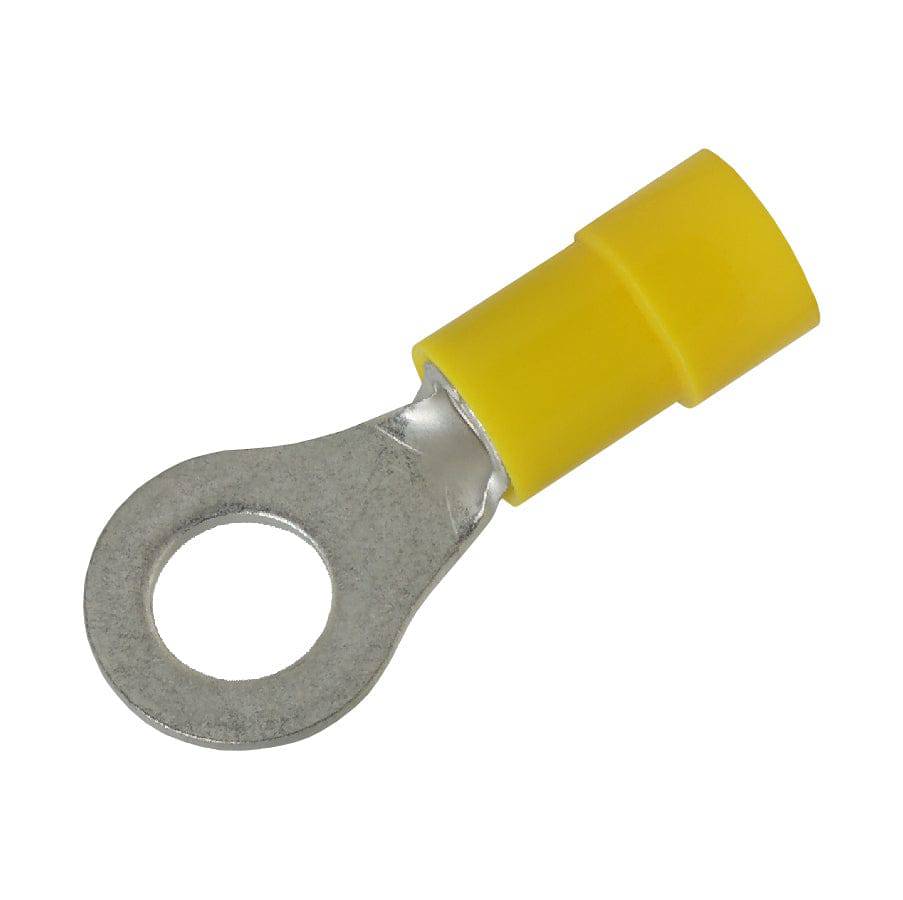

Procurement reference model: RVY5-6. Wire Size: 12-10 AWG; Stud Size: 1/4" Stud; Color: Yellow. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|

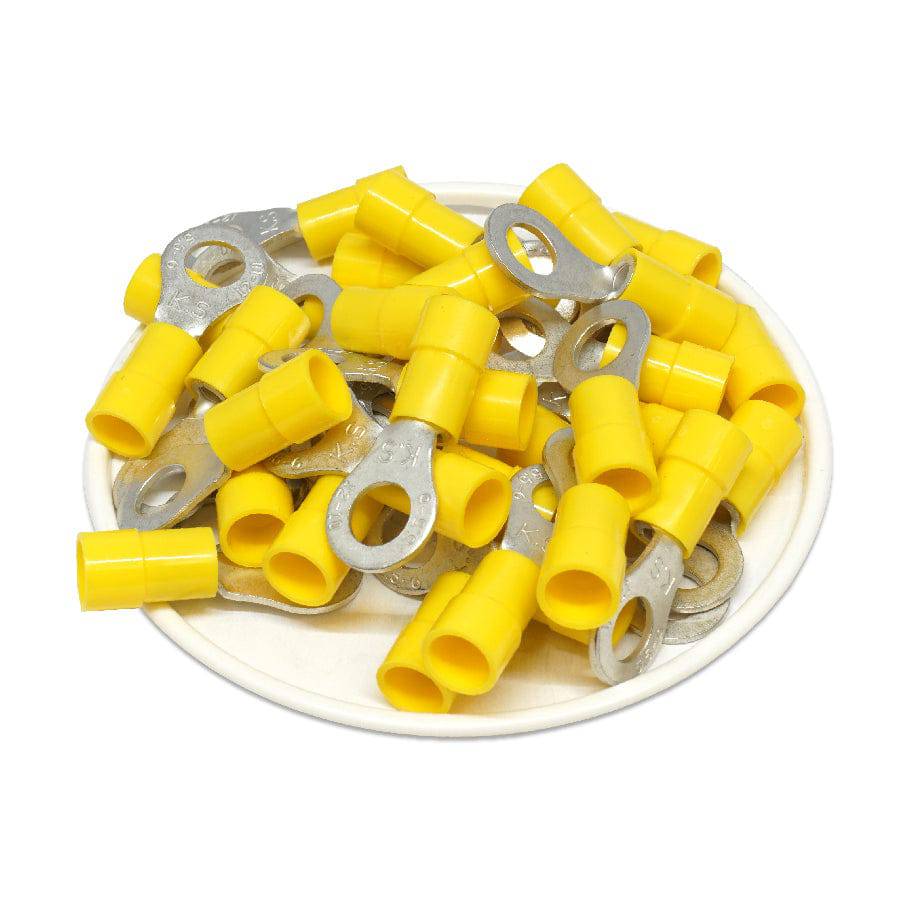

| Reference pack size | 50 · source pack reference |
| Wire Size | 12-10 AWG |
| Stud Size | 1/4" Stud |
| Color | Yellow |
| T | 1.0mm (0.04") |
| L | 29.5mm (1.16") |
| F | 10.5mm (0.413") |
| E | 13mm (0.512") |
| W | 12mm (0.472") |
| D | 6.4mm (0.252") |
| D1 | 3.4mm (0.134") |
| D2 | 6.4mm (0.252") |
| Terminal Material | Tin-Plated Copper |
| Insulation Material | Vinyl |
| Max Electrical Rating | 600 Volts (105 o C) |
| Seam | Butted |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
