Technical reference

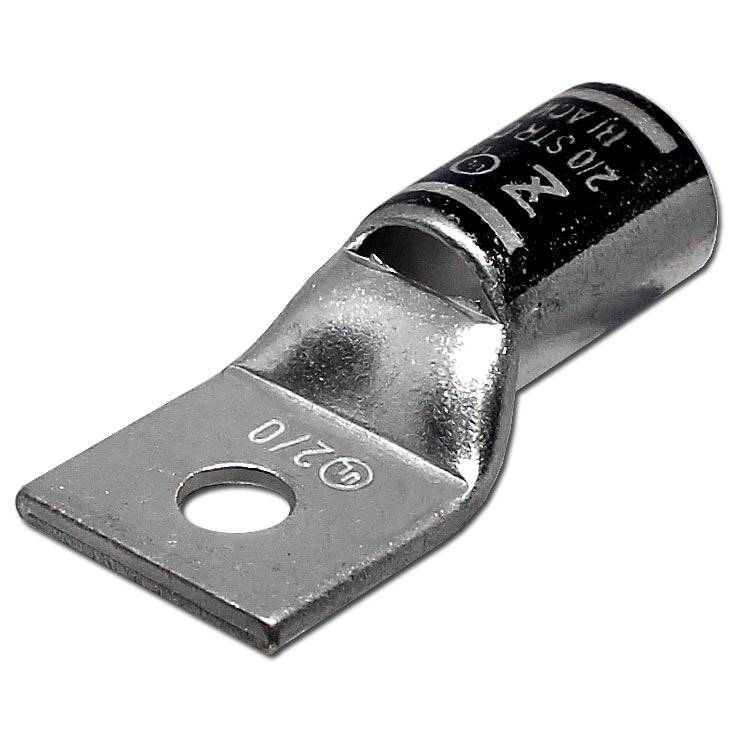

Procurement reference model: SB2012. Wire Size: 2/0 AWG; Stud Size: 1/2" Stud; Color: Black. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 1 · source pack reference |
| Wire Size | 2/0 AWG |
| Stud Size | 1/2" Stud |
| Color | Black |
| L | 56.4mm (2.20") |
| L1 | 28.7mm (1.10") |
| D | 20.8mm (0.80") |
| D1 | 14.2mm (0.60") |
| D2 | 11.7mm (0.50") |
| B | 21.3mm (0.80") |
| E | 13.1mm (0.50") |
| F | 2.5mm (0.10") |
| Material | Tin Plated Copper |
| Temperature Rating | 90°C |
| Voltage Rating | 35 KV |
| Maximum Amp Rating | 265A |
| UL Approved | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
