Technical reference

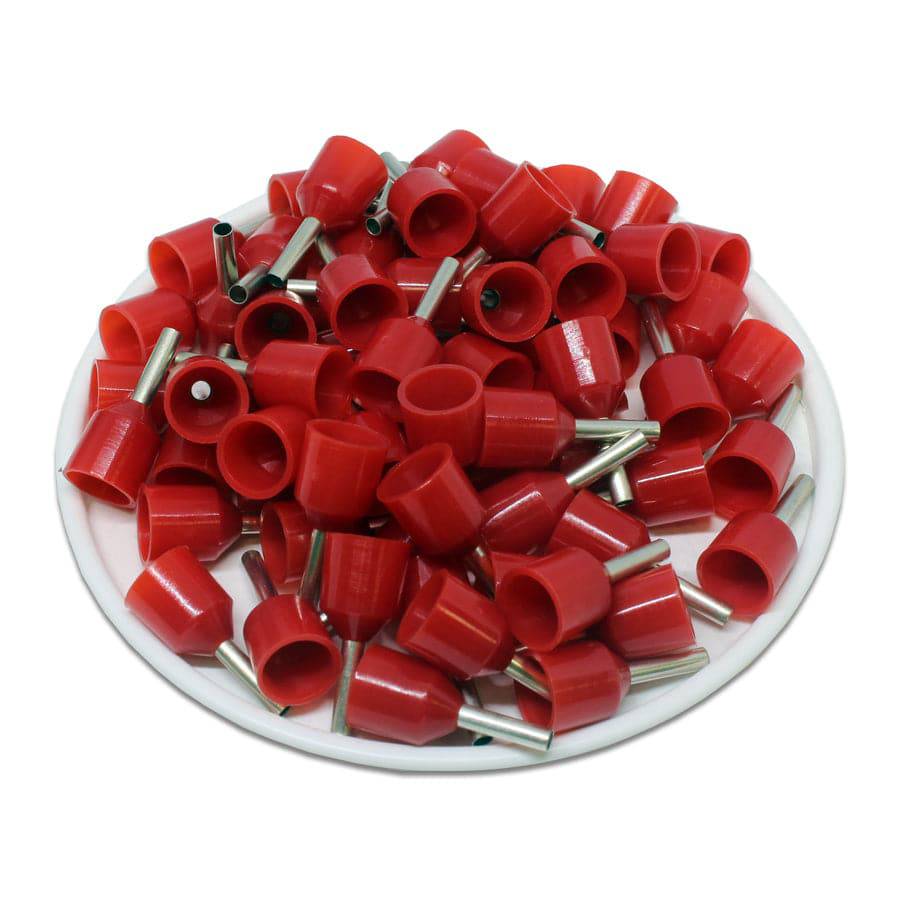

Procurement reference model: SC15008W. Wire Size: 16 AWG; Color: Red; L1: 17.4mm (.69"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Size | 16 AWG |
| Color | Red |
| L1 | 17.4mm (.69") |
| L2 | 8mm (.32") |
| D | 2.1mm (.08") |
| D1 | 1.8mm (.07") |
| D2 | 6.8mm (.27") |
| Material | Tin Plated Copper |
| UL Approved | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
| Max Electrical Rating | 105°C 600 Volts |
| Max Electrical Current | 18A |
| Pin Length | 8 mm |
| Conductor size | 16 AWG (1.50mm²) |
