Technical reference

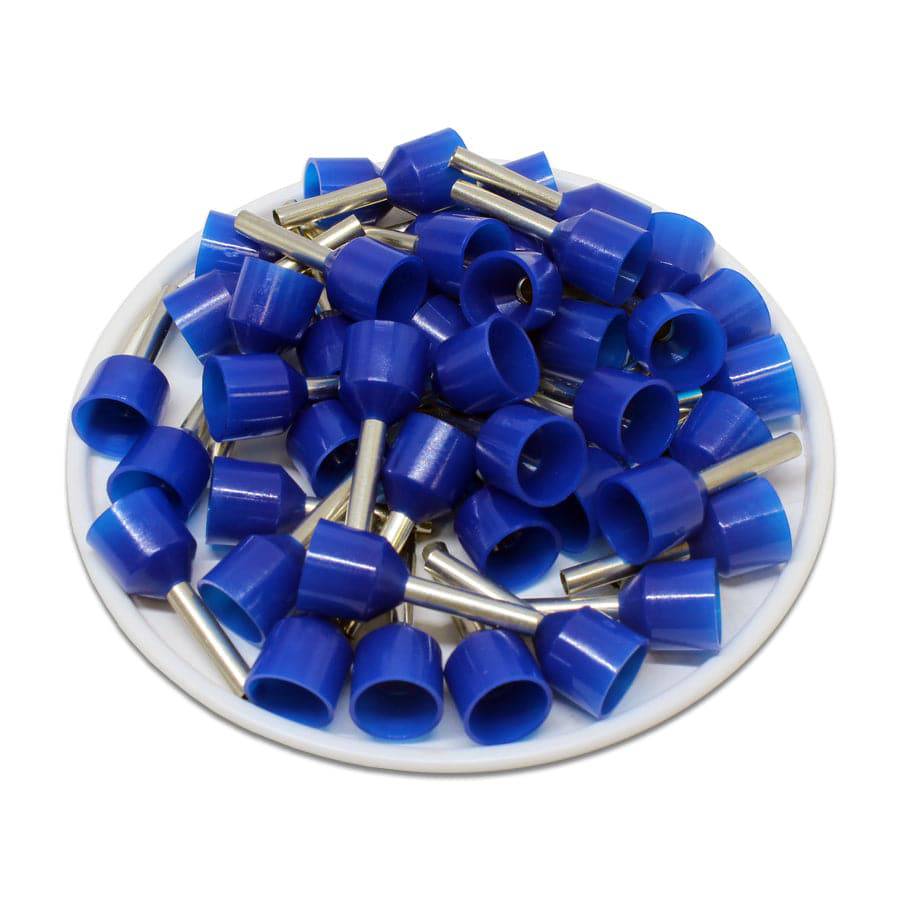

Procurement reference model: SC25012W. Wire Size: 14 AWG; Color: Blue; L1: 21.6mm (.85"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Size | 14 AWG |
| Color | Blue |
| L1 | 21.6mm (.85") |
| L2 | 12mm (.47") |
| D | 2.6mm (.39") |
| D1 | 2.3mm (.09") |
| D2 | 7.8mm (.31") |
| Material | Tin Plated Copper |
| UL Approved | Yes (for E2512-XL-BL) |
| CE Certified | Yes |
| RoHS Compliant | Yes |
| Max Electrical Rating | 105°C 600 Volts |
| Max Electrical Current | 30A |
| Pin Length | 12 mm |
| Conductor size | 14 AWG (2.50mm²) |
Drawings and product details
