Technical reference

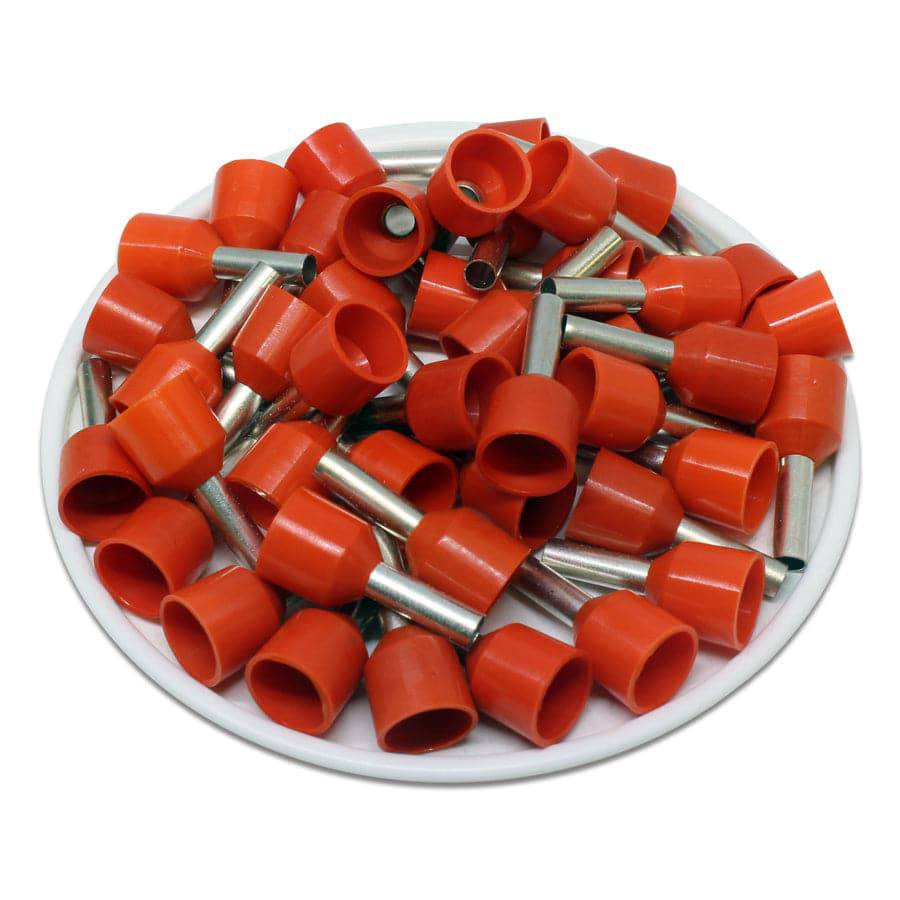

Procurement reference model: SC40010T. Wire Size: 12 AWG; Color: Orange; L1: 19.5mm (.76"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Size | 12 AWG |
| Color | Orange |
| L1 | 19.5mm (.76") |
| L2 | 10mm (.39") |
| D | 3.3mm (.13") |
| D1 | 2.9mm (.11") |
| D2 | 7.8mm (.31") |
| Material | Tin Plated Copper |
| UL Approved | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
| Max Electrical Rating | 105°C 600 Volts |
| Max Electrical Current | 35A |
| Pin Length | 10 mm |
| Conductor size | 12 AWG (4.00mm²) |
Drawings and product details
