Technical reference

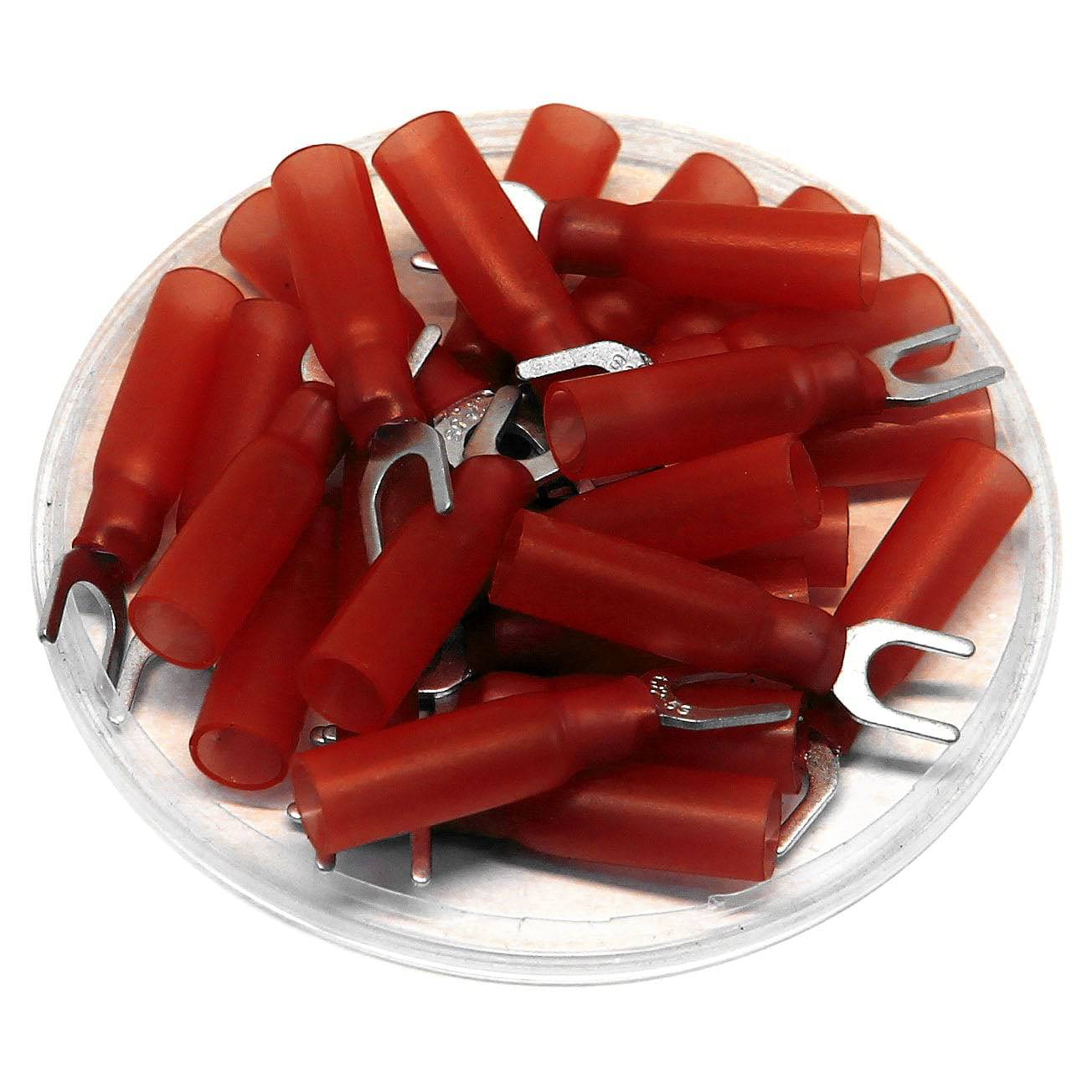

Procurement reference model: SHTS1-5. Wire Size: 22 to 16 AWG; Stud Size: #10; Color: Red. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 25 · source pack reference |
| Wire Size | 22 to 16 AWG |
| Stud Size | #10 |
| Color | Red |
| Insulation Material | Polyethylene |
| Terminal Material | Tin-Plated Copper |
| Temperature Rating | -67 ° F to 221 ° F (-55 ° C to 100 ° C) |
| Voltage Rating | 600 Volts |
| L | 28.5mm (1.12") |
| D2 | 5.3mm (0.21") |
| W | 8.1mm (0.32") |
| CE Certified | Yes |
| RoHS Compliant | Yes |
