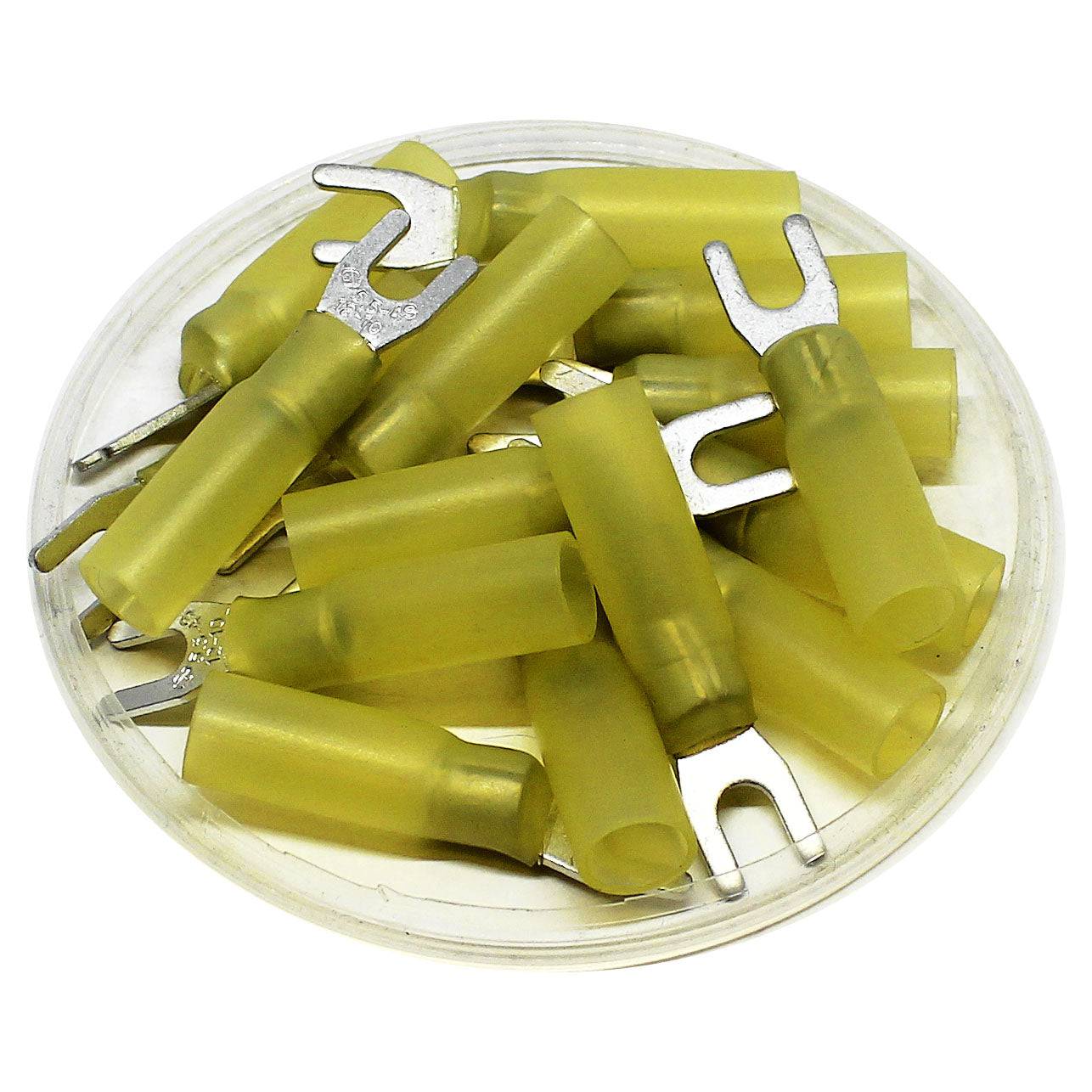

Procurement reference model: SHTS5-4. Wire Size: 12 to 10 AWG; Stud Size: #8; Color: Yellow. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 10 · source pack reference |
| Wire Size | 12 to 10 AWG |
| Stud Size | #8 |
| Color | Yellow |
| Insulation Material | Polyethylene |
| Terminal Material | Tin-Plated Copper |
| Temperature Rating | -67 ° F to 221 ° F (-55 ° C to 100 ° C) |
| Voltage Rating | 600 Volts |

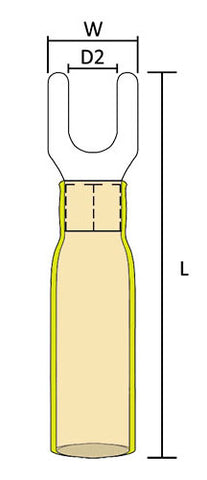

| L | 25.5mm (1.00") |
| D2 | 4.3mm (0.17") |
| W | 8.3mm (0.33") |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
