Technical reference

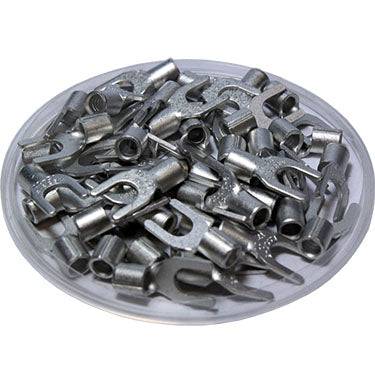

Procurement reference model: SN5-5. Wire Size: 12-10 AWG; Seam: Butted; Stud Size: #10. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Size | 12-10 AWG |
| Seam | Butted |
| Stud Size | #10 |
| Terminal Material | Tin-Plated Copper |
| Max Electrical Current | 50AMP |
| T | 1.0mm (0.04") |
| L | 18.3mm (0.72)") |
| F | 7.0mm (0.26") |
| E | 6.0mm (0.24") |
| W | 9.0mm (0.35") |
| D | 5.6mm (0.22") |
| D1 | 3.4mm (0.13") |
| D2 | 5.3mm (0.21") |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |

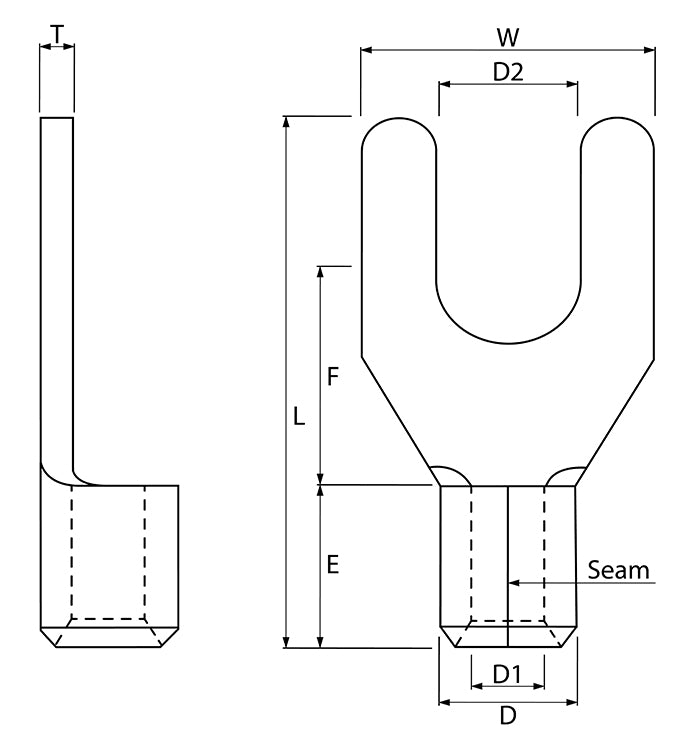

Drawings and product details
