Technical reference

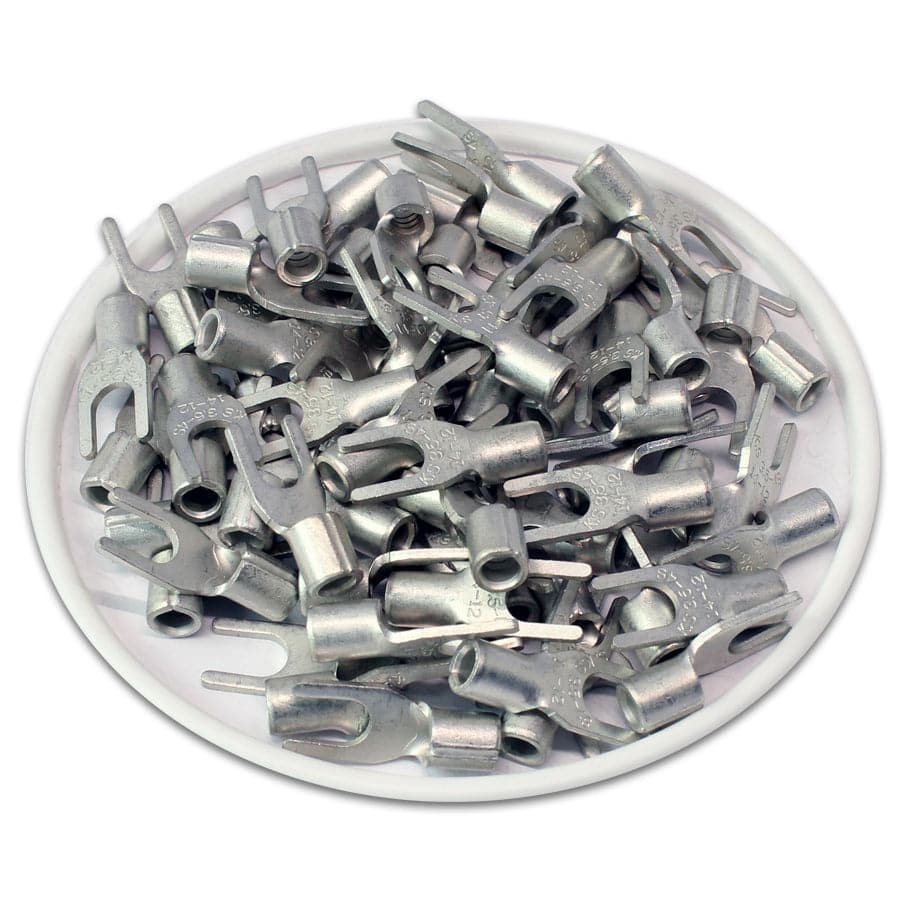

Procurement reference model: SNBS3-4. Wire Size: 14-12 AWG; Stud Size: #8 Stud; T: 0.75mm (0.03"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Size | 14-12 AWG |
| Stud Size | #8 Stud |
| T | 0.75mm (0.03") |
| L | 18mm (0.71") |
| F | 7mm (0.28") |
| E | 6mm (0.24") |
| W | 7.2mm (0.28") |
| D | 5.1mm (0.20") |
| D1 | 2.9mm (0.11") |
| D2 | 4.3mm (0.17") |
| Seam | Brazed |
| Terminal Material | Tin-Plated Copper |
| Max Amp Rating | 35A |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
