Technical reference

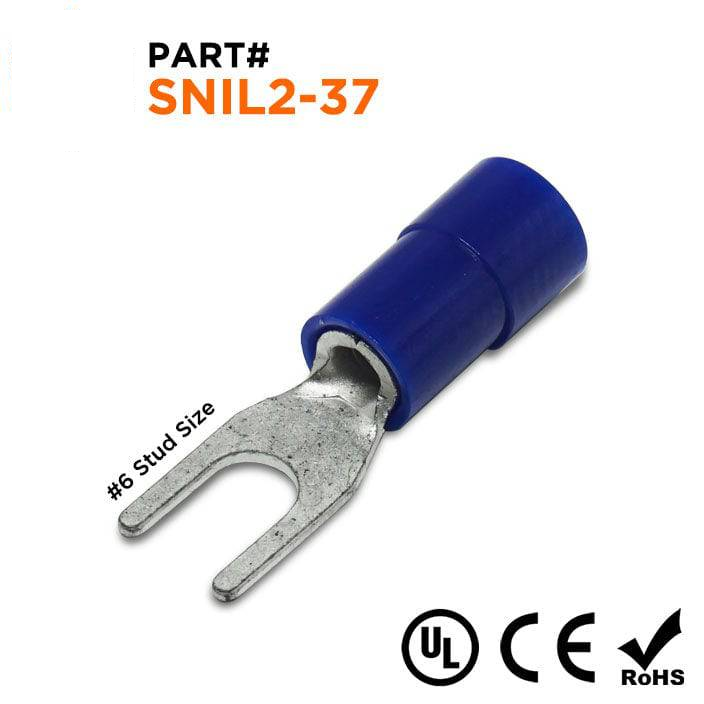

Procurement reference model: SNIL2-37. Wire Size: 16 to 14 AWG; Stud Size: #6 Stud; Color: Blue. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Size | 16 to 14 AWG |
| Stud Size | #6 Stud |
| Color | Blue |

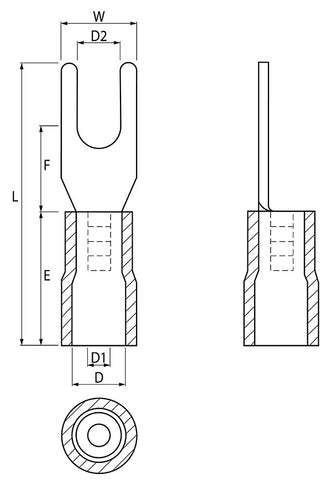

| T | 0.75mm (0.030") |
| L | 22.0mm (0.866") |
| F | 6.5mm (0.256") |
| E | 11.0mm (0.433") |
| W | 6.0mm (0.236") |
| D | 4.5mm (0.177") |
| D1 | 2.3mm (0.091") |
| D2 | 3.7mm (0.146") |
| Terminal Material | Tin-Plated Copper |
| Insulation Material | Polycarbonate |
| Max Electrical Rating | 600 Volts (105°C) |
| Seam | Butted |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
