Technical reference

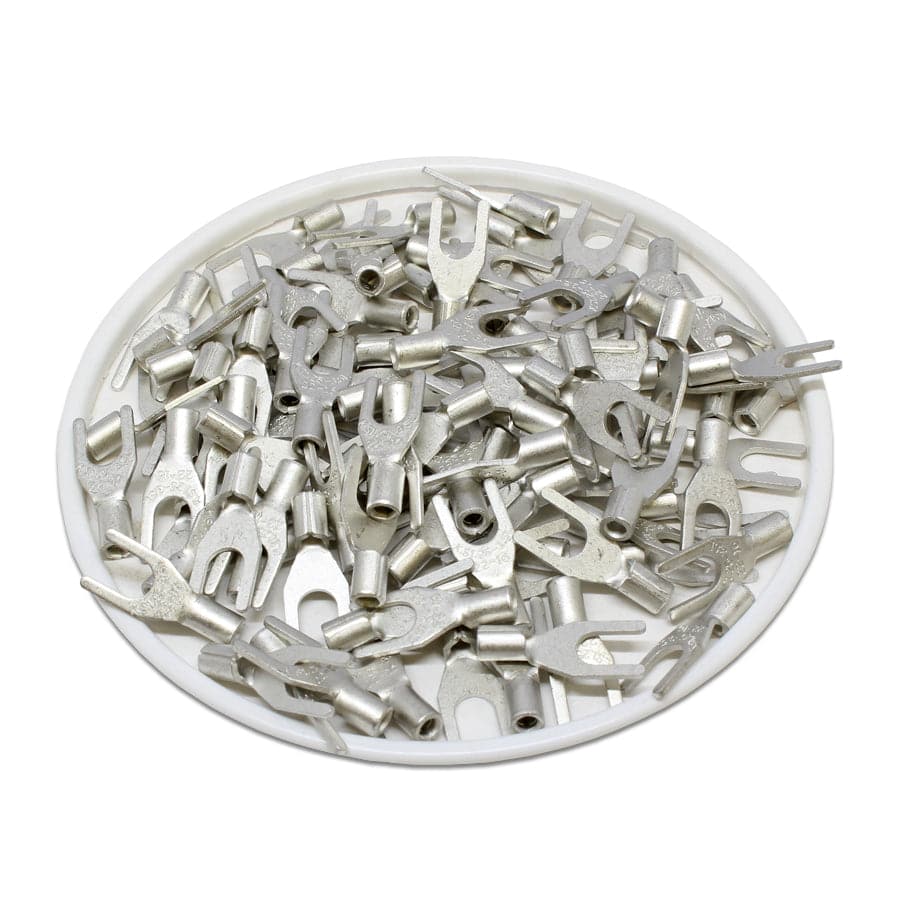

Procurement reference model: SNL1-37. Wire Size: 22-16 AWG; Seam: Butted; Stud Size: #6. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Size | 22-16 AWG |
| Seam | Butted |
| Stud Size | #6 |
| Terminal Material | Tin-Plated Copper |
| Max Electrical Current | 18AMP |
| T | 0.7mm (0.03") |
| L | 16.0mm (0.63)") |
| F | 6.5mm (0.26") |
| E | 4.8mm (0.19") |
| W | 6.4mm (0.25") |
| D | 3.4mm (0.13") |
| D1 | 1.7mm (0.07") |
| D2 | 3.7mm (0.15") |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
