Technical reference

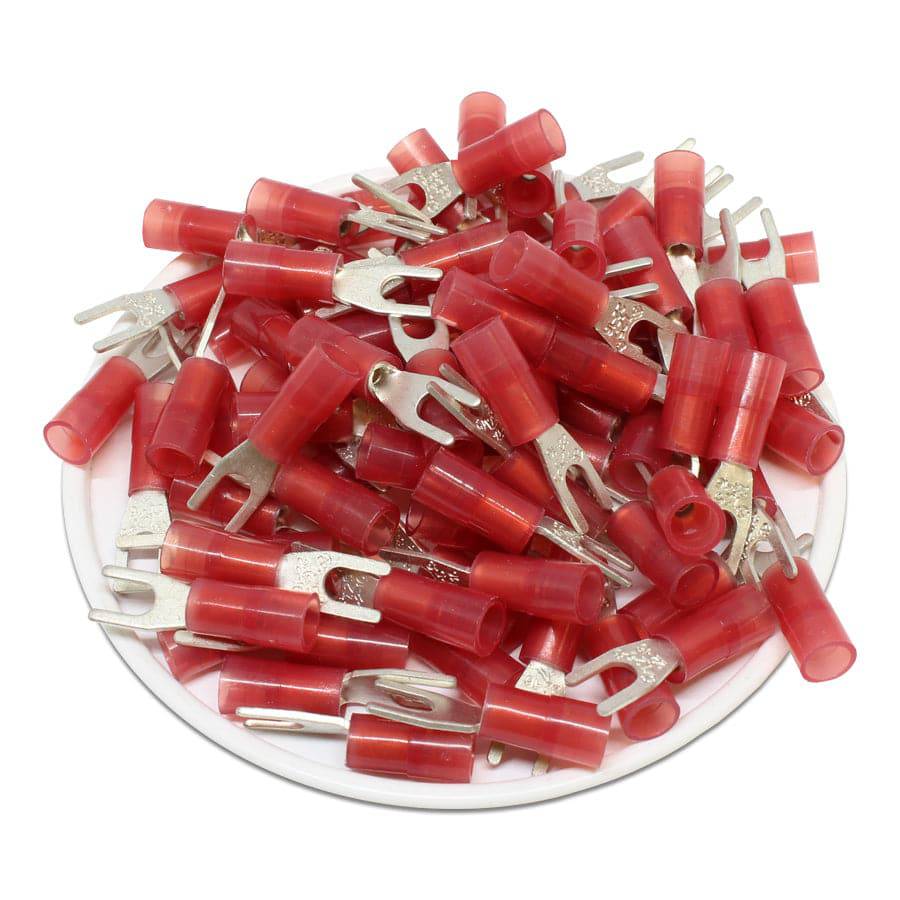

Procurement reference model: SNYB1-32. Wire Size: 22-16 AWG; Color: Red; Insulation Material: Nylon. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 1 · source pack reference |
| Wire Size | 22-16 AWG |
| Color | Red |
| Insulation Material | Nylon |
| Terminal Material | Tin-Plated Copper |
| Temperature Rating | 105 o C |
| Voltage Rating | 600 Volts |
| Stud Size | #4 |
| T | 0.7mm (0.03") |
| L | 22.0mm (0.87") |
| F | 6.5mm (0.26") |
| E | 11.0mm (0.43") |
| W | 5.7mm (0.22") |
| D | 4.5mm (0.18") |
| D1 | 1.7mm (0.06") |
| D2 | 3.2mm (0.13") |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
