Technical reference
Procurement reference model: SNYBL1-37. Wire Size: 22-16 AWG; Color: Red; Stud Size: #6. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Size | 22-16 AWG |
| Color | Red |
| Stud Size | #6 |

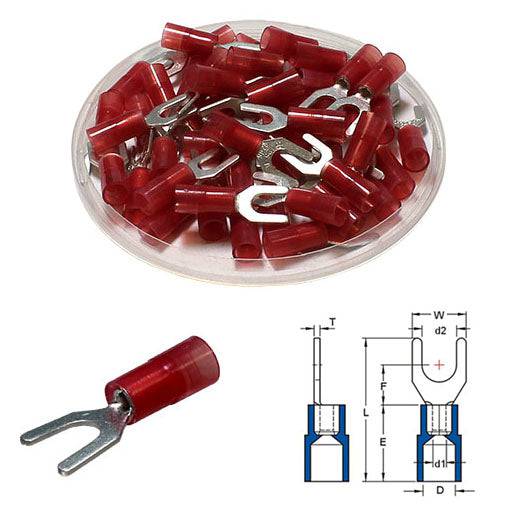

| T | 0.7mm (0.03") |
| L | 22.0mm (0.87") |
| F | 6.5mm (0.26") |
| E | 11.0mm (0.43") |
| W | 6.4mm (0.25") |
| D | 4.5mm (0.18") |
| D1 | 1.7mm (0.06") |
| D2 | 3.7mm (0.15") |
| Insulation Material | Nylon |
| Terminal Material | Tin-Plated Copper |
| Temperature Rating | 105°C |
| Voltage Rating | 600 Volts |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
