Technical reference

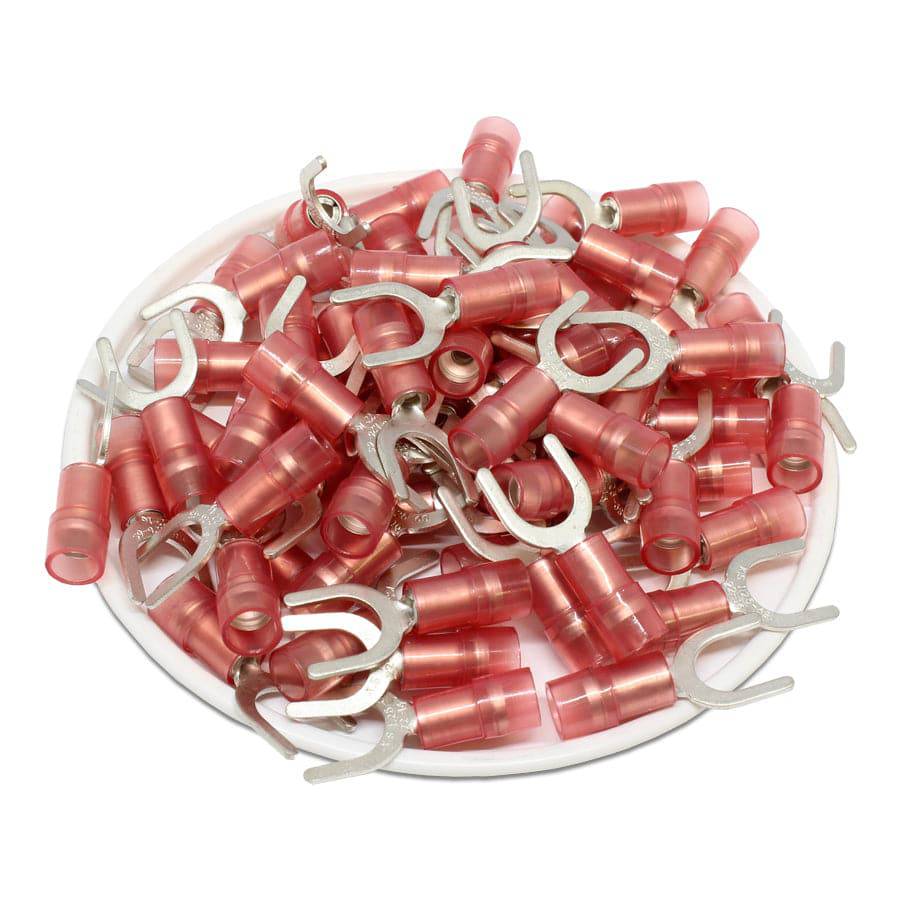

Procurement reference model: SNYDS1-6. Wire Range: 22-16 AWG; Stud Size: 1/4" Stud; Color: Red. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 1 · source pack reference |
| Wire Range | 22-16 AWG |
| Stud Size | 1/4" Stud |
| Color | Red |
| T | 0.75mm (0.03") |
| L | 22mm (1.10") |
| F | 6.5mm (0.26") |
| E | 11mm (0.43") |
| W | 9.5mm (0.37") |
| D | 4.5mm (0.18") |
| D1 | 1.7mm (0.09") |
| D2 | 6.4mm (0.25") |
| Insulation Material | Nylon |
| Terminal Material | Tin-Plated Copper |
| Voltage | 600 Volts |
| Temperature Rating | 105°C |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
