Technical reference

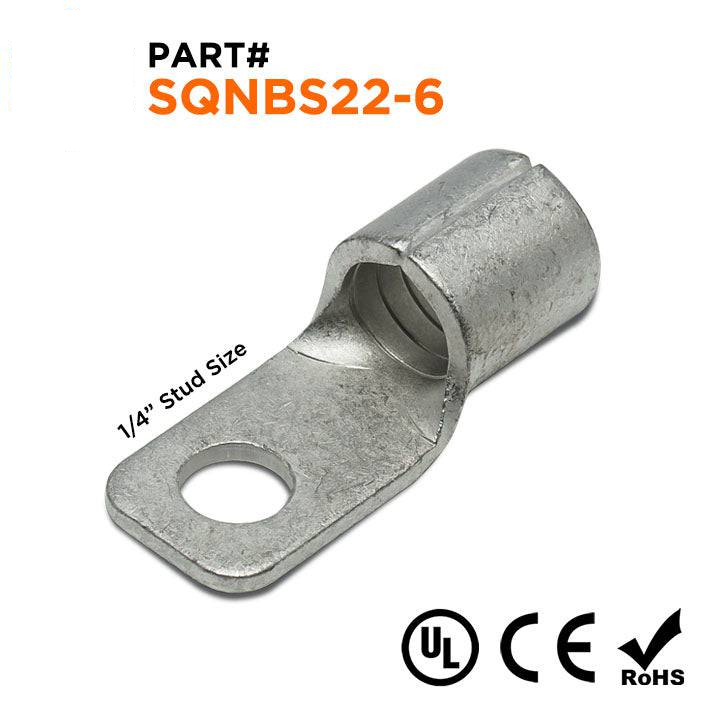

Procurement reference model: SQNBS22-6. Wire Range: 4 AWG; Stud Size: 1/4" Stud; L: 32.0mm (1.26"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 25 · source pack reference |
| Wire Range | 4 AWG |
| Stud Size | 1/4" Stud |
| L | 32.0mm (1.26") |
| E | 12.0mm (0.453") |
| F | 13.5mm (0.531") |
| W | 12.5mm (0.492") |
| D | 11.5mm (0.453") |
| D1 | 7.7mm (0.303") |
| D2 | 6.4mm (0.252") |
| T | 1.7mm (0.067") |
| Terminal Material | Copper |
| Surface Treatment | Tin Plated |
| Current Rating | 125A |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
