Technical reference

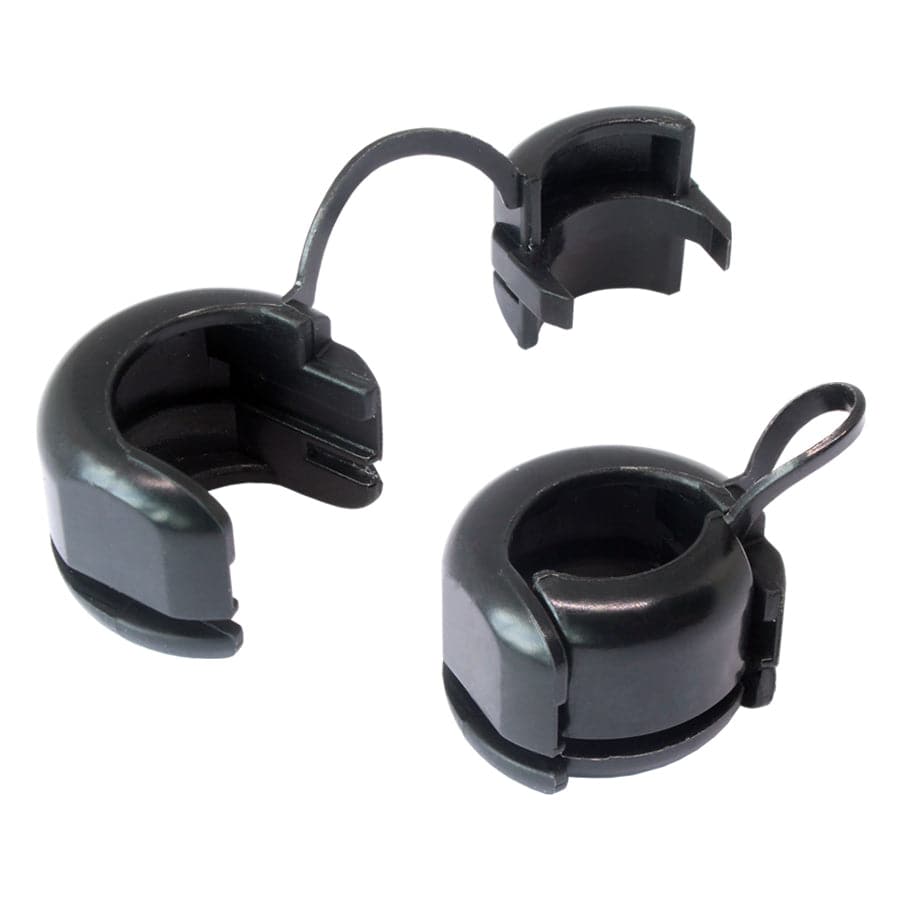

Procurement reference model: SRB-2P4. Mounting Hole (A): 9.5mm (0.37″); Rotation Prevention (B): 8.7mm (0.34″); Cable Size (C): 3mm-5.6mm (0.12″ – 0.22″). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 1 · source pack reference |
| Mounting Hole (A) | 9.5mm (0.37″) |
| Rotation Prevention (B) | 8.7mm (0.34″) |
| Cable Size (C) | 3mm-5.6mm (0.12″ – 0.22″) |
| Body Length (D) | 10.3mm (0.41″) |
| Maximum Thickness (E) | 1.6mm (0.063″) |
| UL Wire | SPT-1 |
| Size Number | 18/2 |
| Cross Section | Flat |
| Material | Nylon |
| Color | Black |
| UL Recognized | Yes |
Drawings and product details
