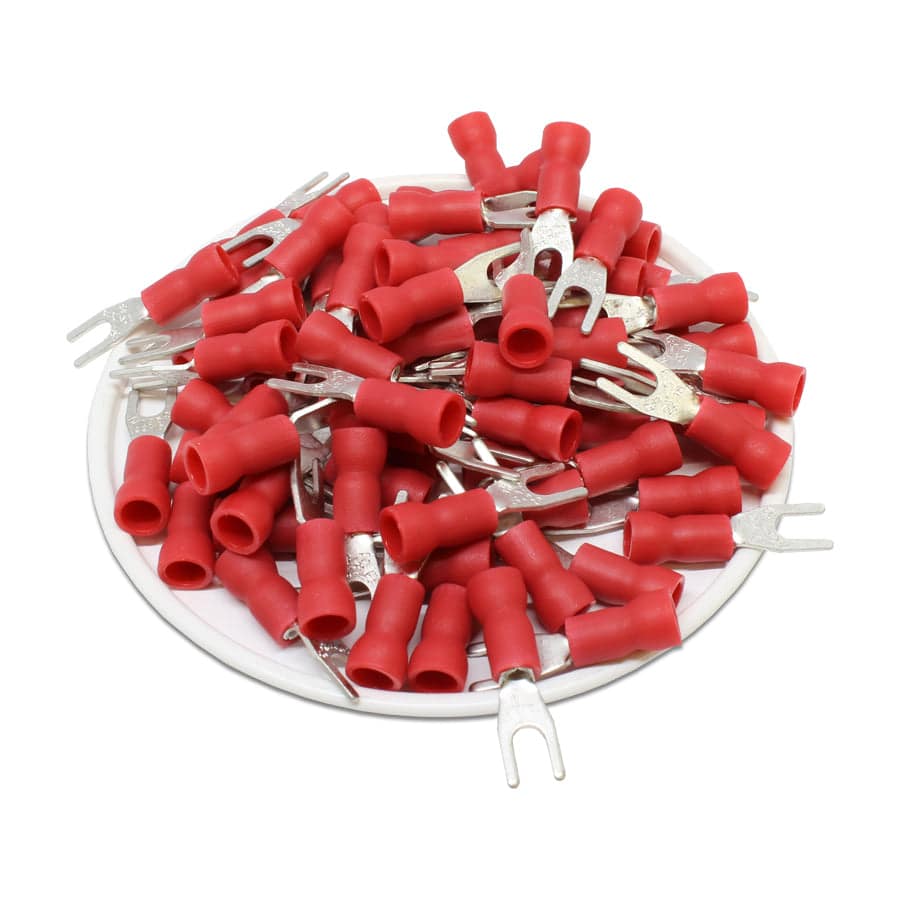

Procurement reference model: SVEL1-37. Wire Size: 22-16 AWG; Stud Size: #6 Stud; Color: Red. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Size | 22-16 AWG |
| Stud Size | #6 Stud |
| Color | Red |
| T | 0.7mm (0.03") |
| L | 22.2mm (0.87") |
| F | 6.5mm (0.26") |
| E | 11.2mm (0.44") |
| W | 6.4mm (0.25") |
| D | 4.0mm (0.16") |
| D1 | 1.7mm (0.07") |
| D2 | 3.7mm (0.15") |
| Temperature Rating | 105°C |
| Voltage Rating | 600 Volts |
| Max Electrical Current | 18AMP |
| Terminal Insulation | Vinyl |
| Terminal Material | Tin-Plated Copper |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
