Technical reference

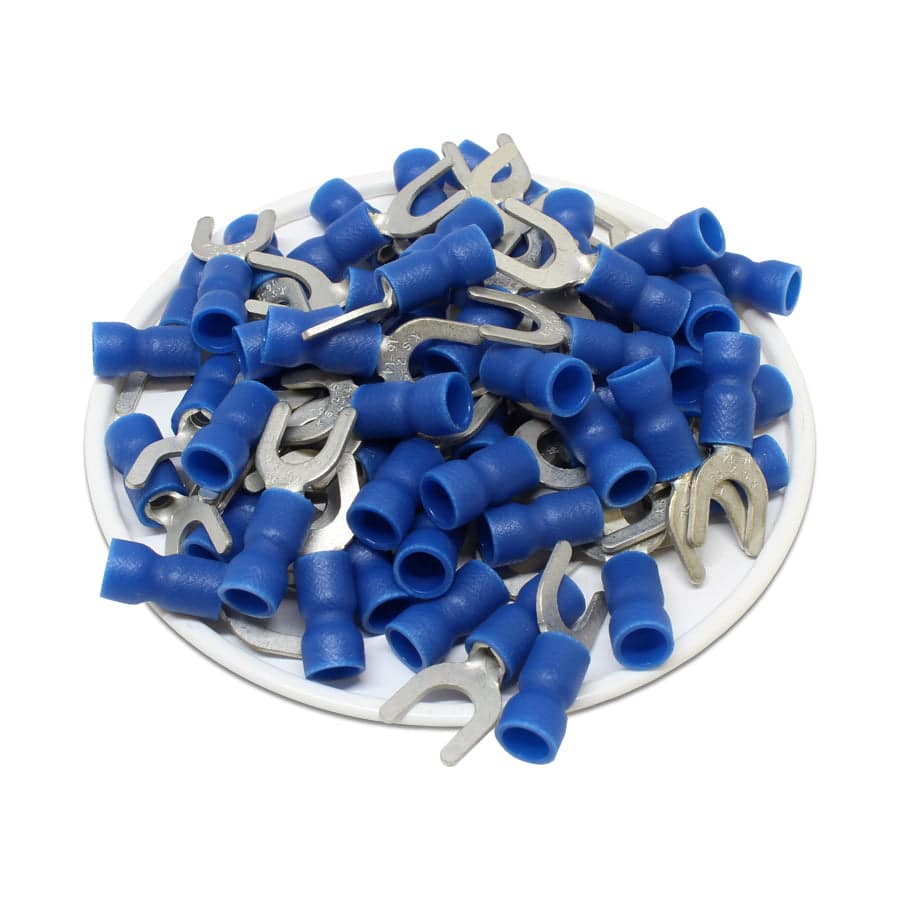

Procurement reference model: SVEL2-5. Wire Size: 16-14 AWG; Stud Size: #10 Stud; Color: Blue. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Size | 16-14 AWG |
| Stud Size | #10 Stud |
| Color | Blue |
| T | 0.8mm (0.03") |
| L | 22.5mm (0.89") |
| F | 6.5mm (0.26") |
| E | 11.5mm (0.45") |
| W | 9.3mm (0.37") |
| D | 4.5mm (0.18") |
| D1 | 2.3mm (0.09") |
| D2 | 5.3mm (0.21") |
| Temperature Rating | 105°C |
| Voltage Rating | 600 Volts |
| Max Electrical Current | 18AMP |
| Terminal Insulation | Vinyl |
| Terminal Material | Tin-Plated Copper |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
