Technical reference

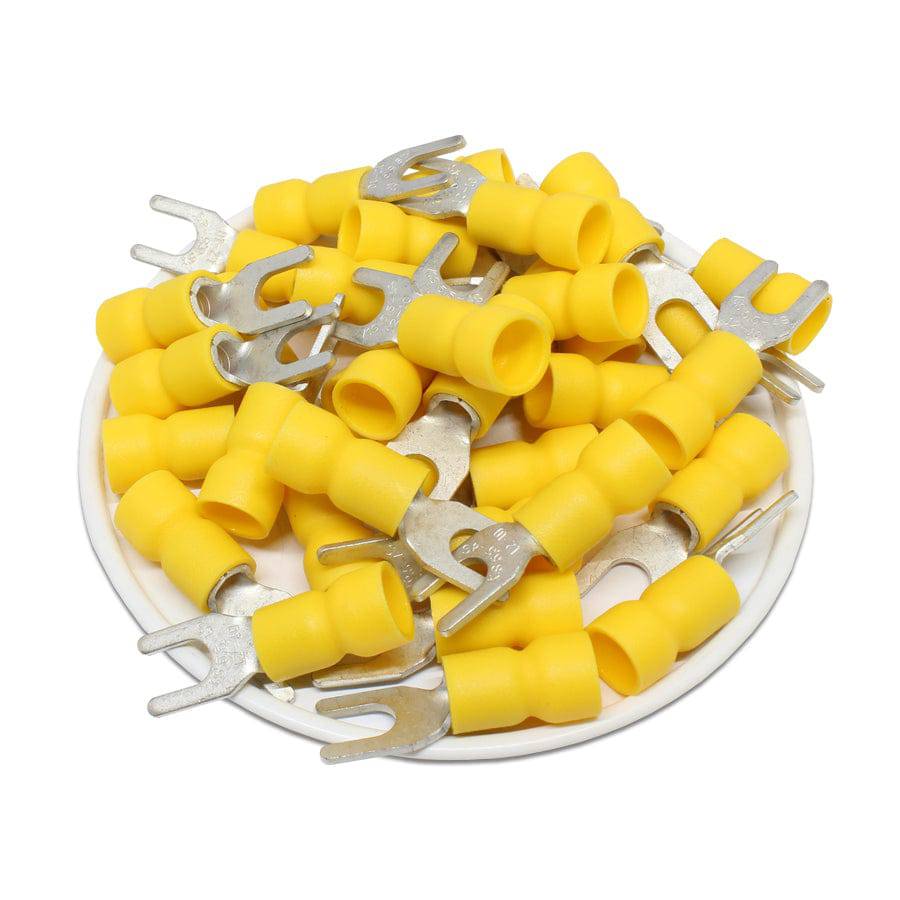

Procurement reference model: SVES5-4. Wire Size: 12-10 AWG; Temperature Rating: 105 o C; Voltage Rating: 600 Volts. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 50 · source pack reference |
| Wire Size | 12-10 AWG |
| Temperature Rating | 105 o C |
| Voltage Rating | 600 Volts |
| Max Eletrical Current | 50AMP |
| Terminal Insulation | Vinyl |
| Terminal Material | Tin-Plated Copper |
| L | 26.6mm (1.05)") |
| F | 7.0mm (0.28") |
| E | 14.1mm (0.56") |
| W | 8.3mm (0.33") |
| D | 6.3mm (0.25") |
| D1 | 3.4mm (0.13") |
| D2 | 4.3mm (0.17") |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
| Color | Yellow |
