Technical reference

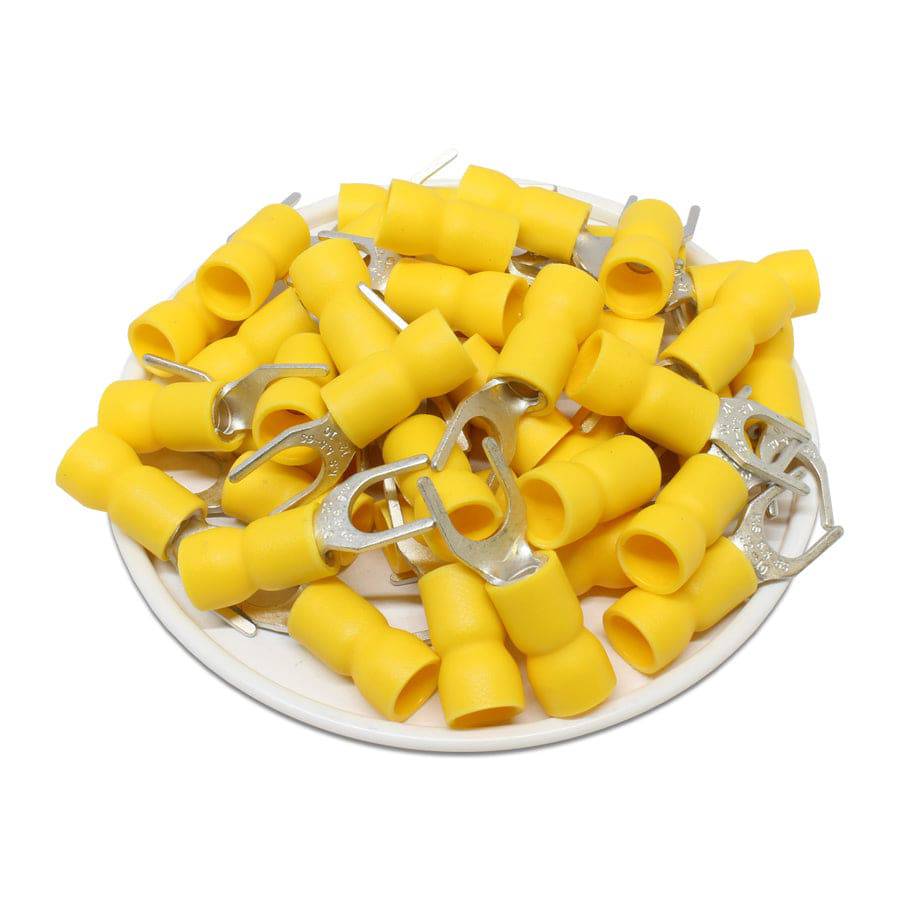

Procurement reference model: SVES5-6. Wire Size: 12-10 AWG; Terminal Material: Tin-Plated Copper; Max Electrical Current: 50AMP. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Size | 12-10 AWG |
| Terminal Material | Tin-Plated Copper |
| Max Electrical Current | 50AMP |
| Temperature Rating | 105 o C |
| Voltage Rating | 600 Volts |
| T | 1.0mm (0.04") |
| L | 26.6mm (1.05)") |
| F | 7.0mm (0.28") |
| E | 14.1mm (0.56") |
| W | 9.0mm (0.35") |
| D | 6.3mm (0.25") |
| D1 | 3.4mm (0.13") |
| D2 | 6.4mm (0.25") |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
