Technical reference

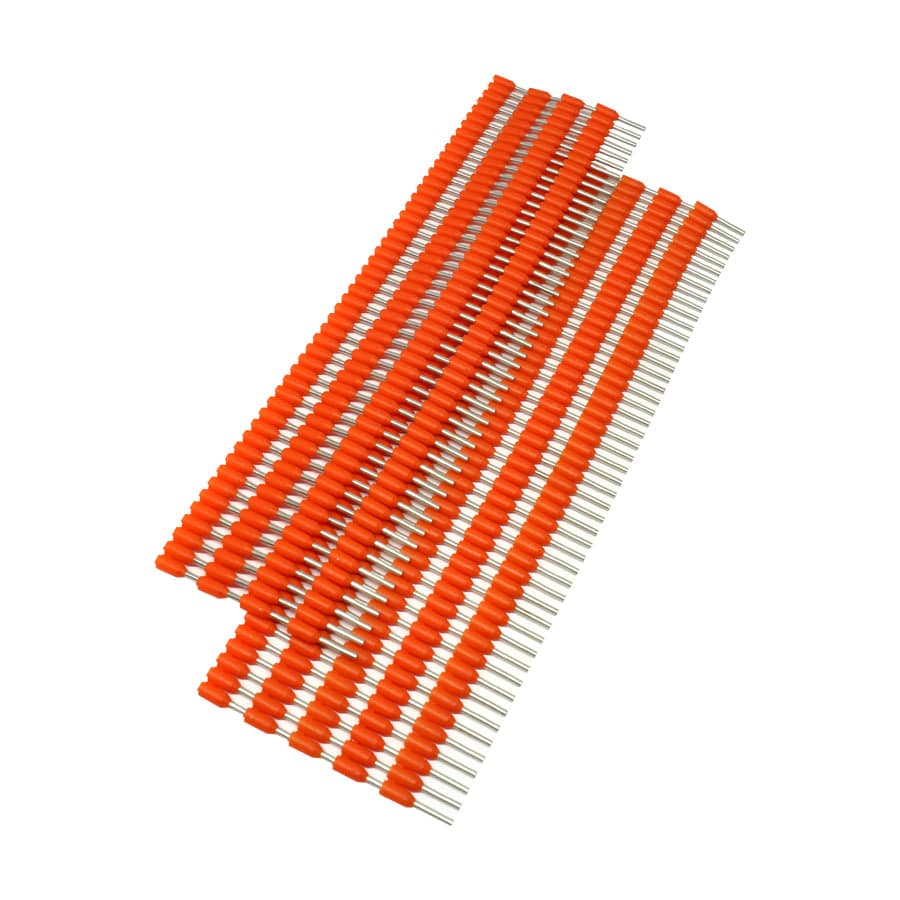

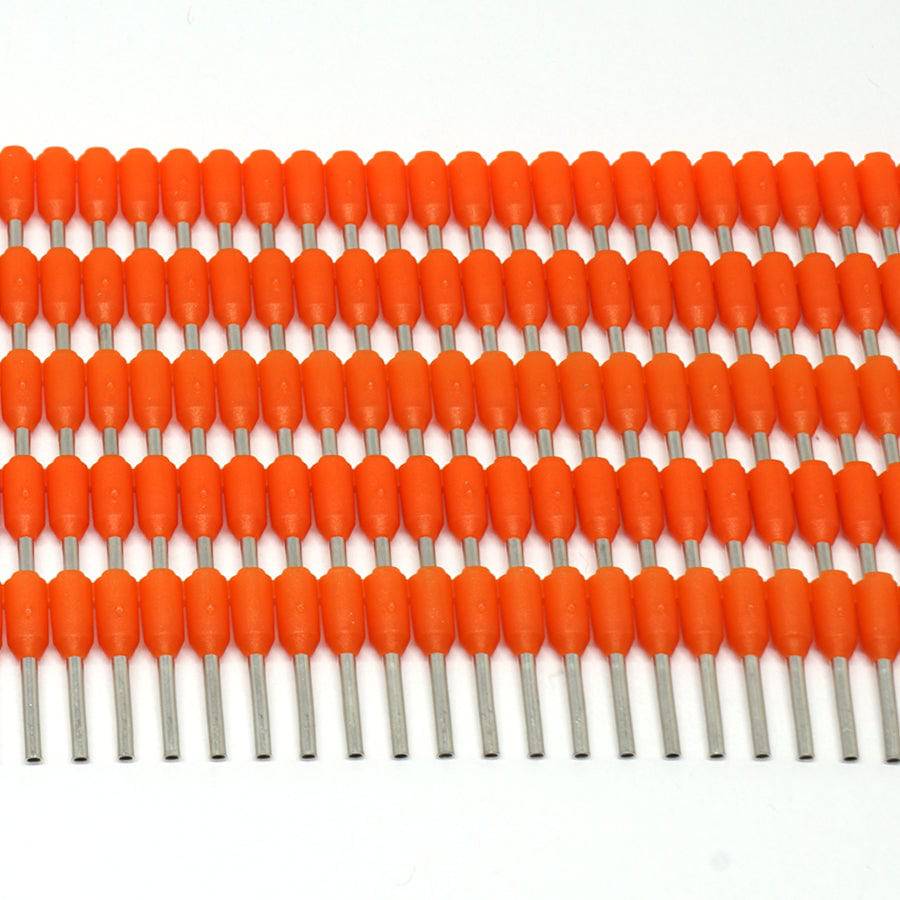

Procurement reference model: SW05008. Wire Size: 22 AWG (0.50mm2); Color: Orange; Pin Length: 8mm (0.31"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 500 · source pack reference |
| Wire Size | 22 AWG (0.50mm2) |
| Color | Orange |
| Pin Length | 8mm (0.31") |
| Material | Tin Plated Copper & Polypropylene |
| L1 | 14.0mm (0.551") |
| L2 | 8.0mm (0.315") |
| D | 1.3mm (0.051") |
| D1 | 1.0mm (0.039") |
| D2 | 2.6mm (0.102") |
| CE Certfied | Yes |
| RoHS Compliant | Yes |
| Max Temperature Rating | 221°F (105°C) |
| Max Electrical Rating | 600 Volts |
| Max Electrical Current | 12 AMP |
| Conductor size | 22 AWG (0.50mm²) |
