Technical reference

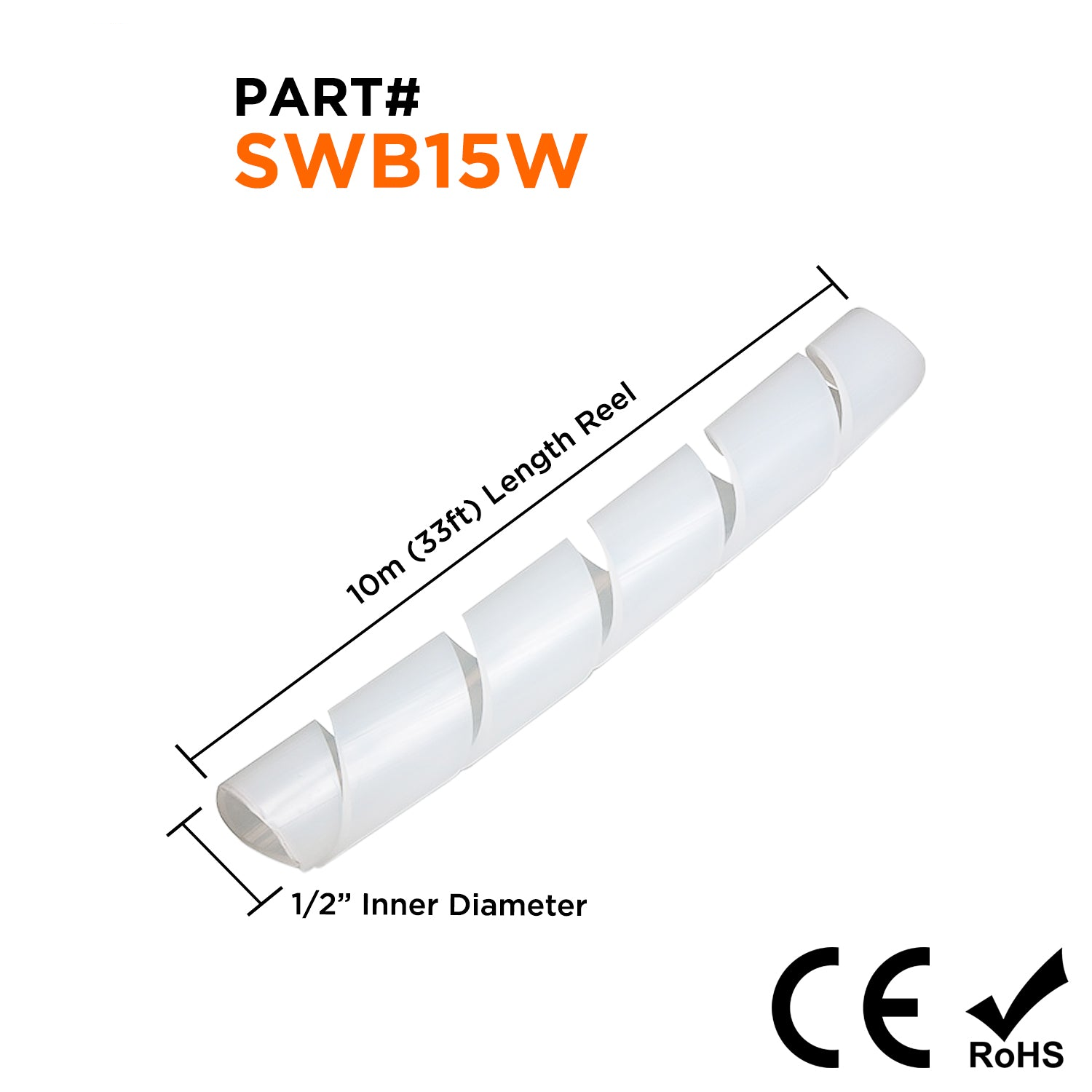

Procurement reference model: SWB15W. Cable Range: 1/2" to 2-15/16" (12mm to 75mm); Color: White (Natural); Inside Diameter (D): 12.0mm (0.47"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 1 · source pack reference |
| Cable Range | 1/2" to 2-15/16" (12mm to 75mm) |
| Color | White (Natural) |
| Inside Diameter (D) | 12.0mm (0.47") |
| Outside Diameter (P) | 15.0mm (0.59") |
| Pitch (W) | 15.0mm (0.59") |
| Material | Polyethylene (PE) |
| Temperature Rating | -30°F to 165°F (-35°C to 73°C) |
| Length of Bundle | 33 Feet (10m) |
| CE Certified | Yes |
| RoHS Compliant | Yes |
