Technical reference

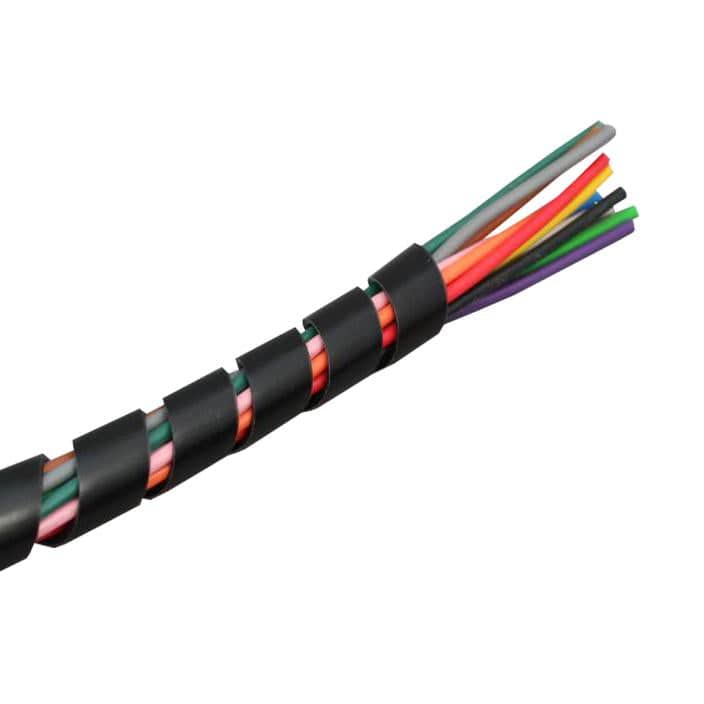

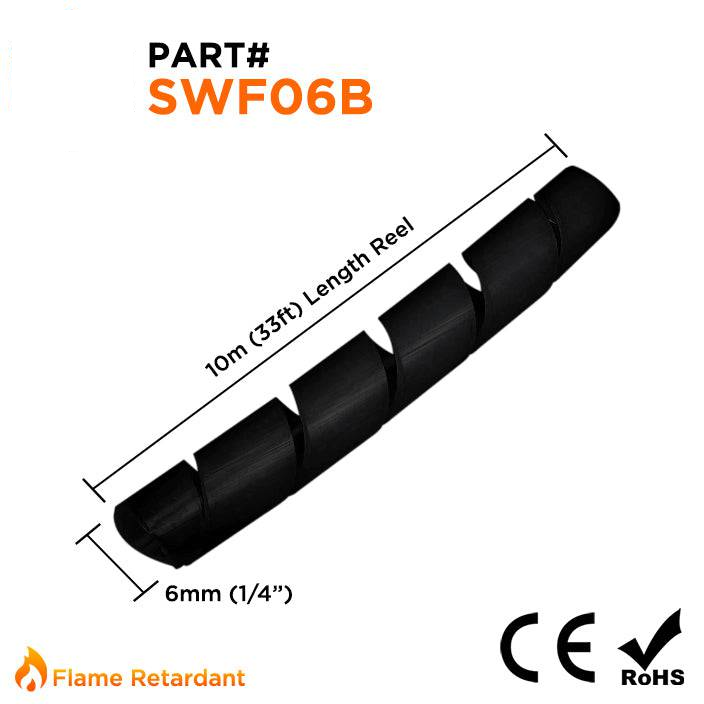

Procurement reference model: SWF06B. Size: 1/4" (6mm); Color: Black; Inside Diameter (D): 5.8mm (0.23"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 1 · source pack reference |
| Size | 1/4" (6mm) |
| Color | Black |
| Inside Diameter (D) | 5.8mm (0.23") |
| Outside Diameter (P) | 6.6mm (0.26") |
| Pitch (W) | 11.0mm (0.43") |
| Max Bundle Diameter | 12.7mm (1/2") |
| Material | Polyethylene (PE) |
| Temperature Rating | -35°C to 73°C (-30°F to 165°F) |
| Length of Reel | 10m (33ft) |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
