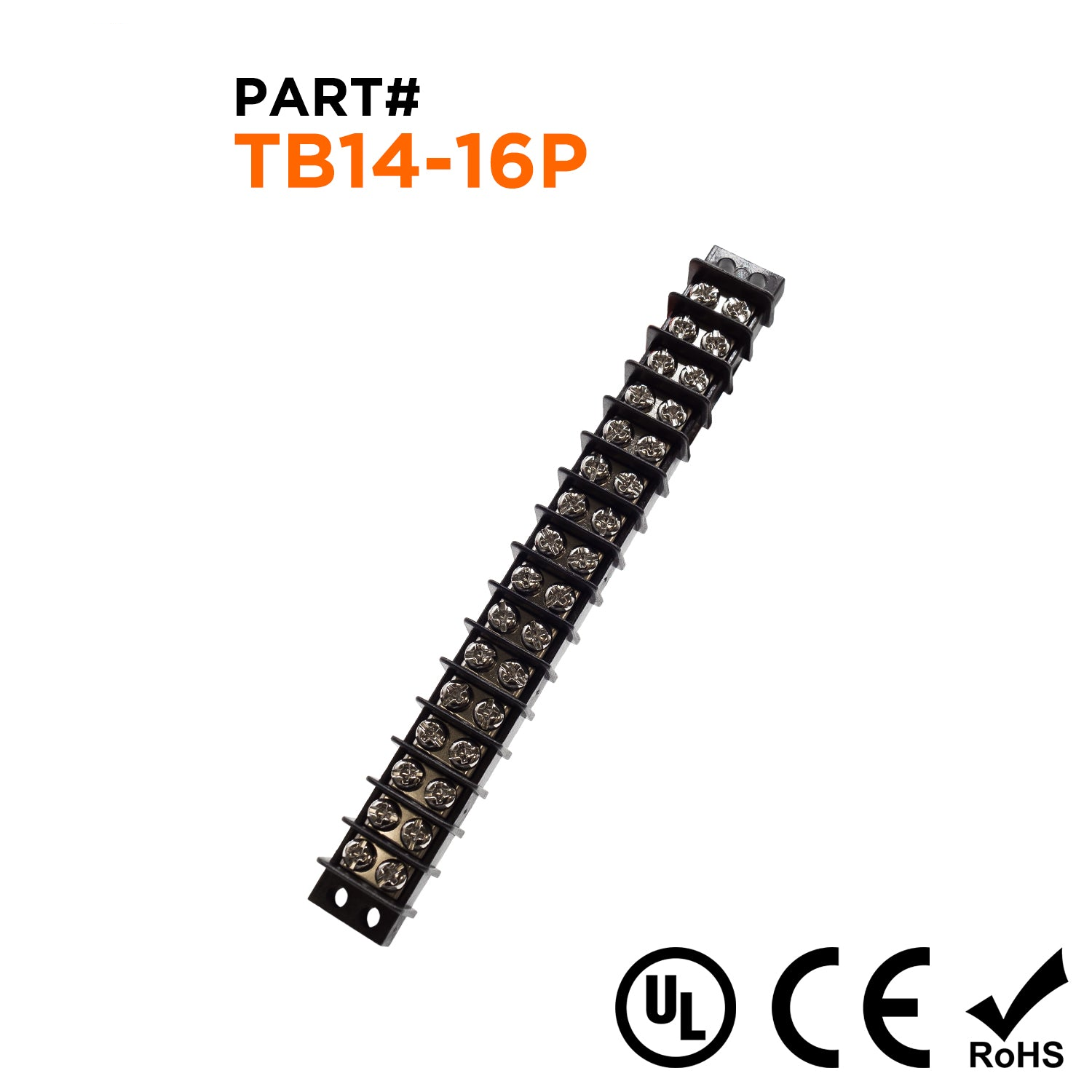

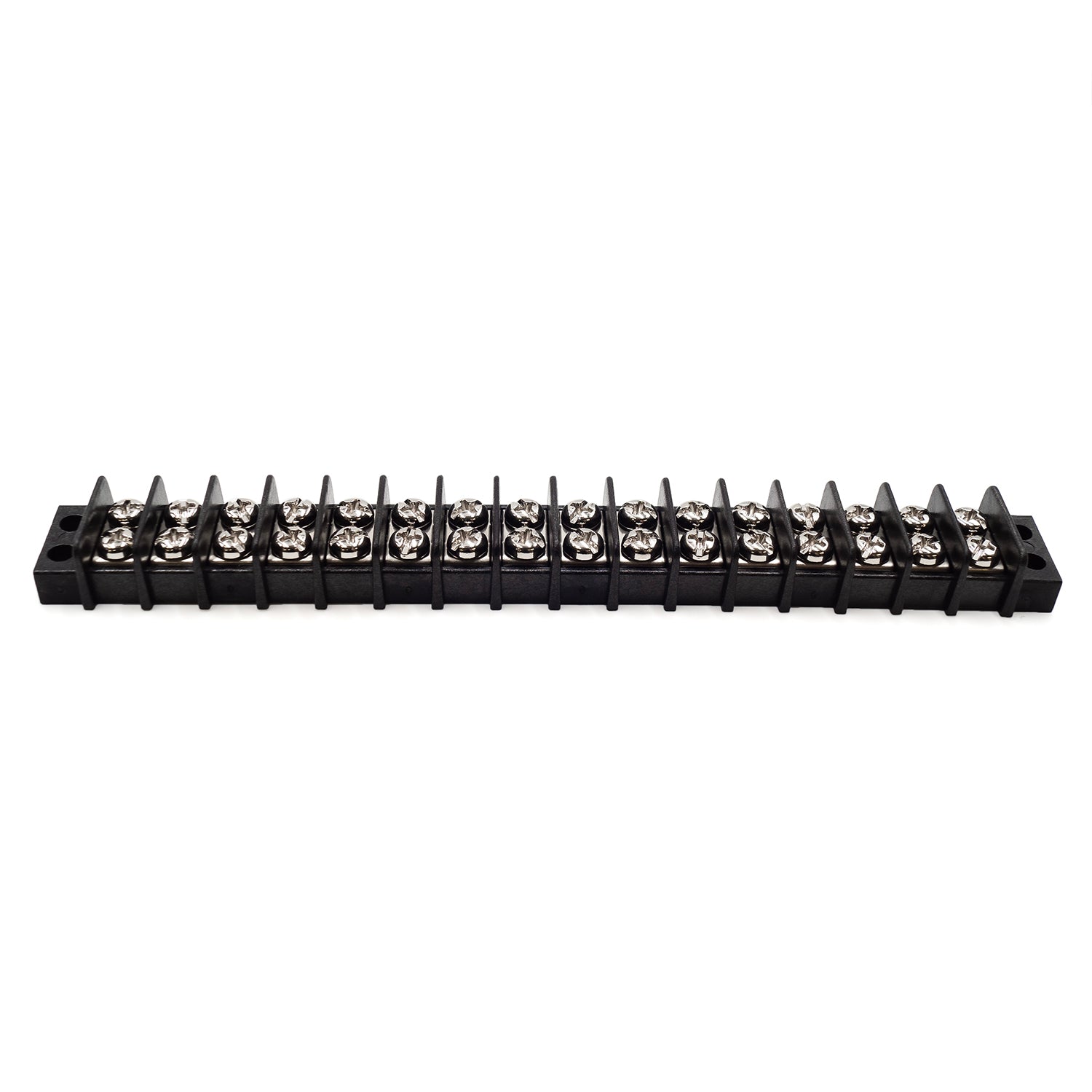

Procurement reference model: TB14-16P. Number of Poles: 16 Poles; Pitch: 9.5mm (0.38"); Terminal Spacing: 8.0mm (0.31"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 1 · source pack reference |
| Number of Poles | 16 Poles |
| Pitch | 9.5mm (0.38") |
| Terminal Spacing | 8.0mm (0.31") |

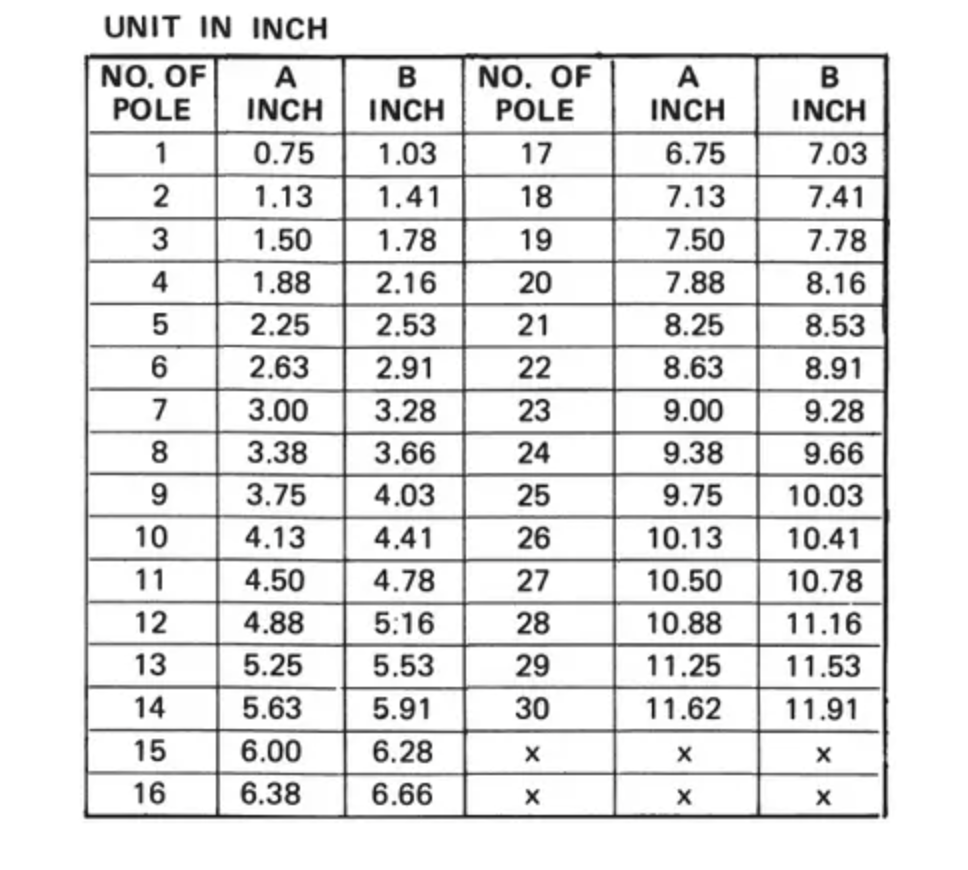

| A | 162.1mm (6.38") |
| B | 169.2mm (6.66") |
| Material | Thermoplastic UL94-V0 |
| Electrical Rating | 300 Volts |
| Amp Rating | 15AMP |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
