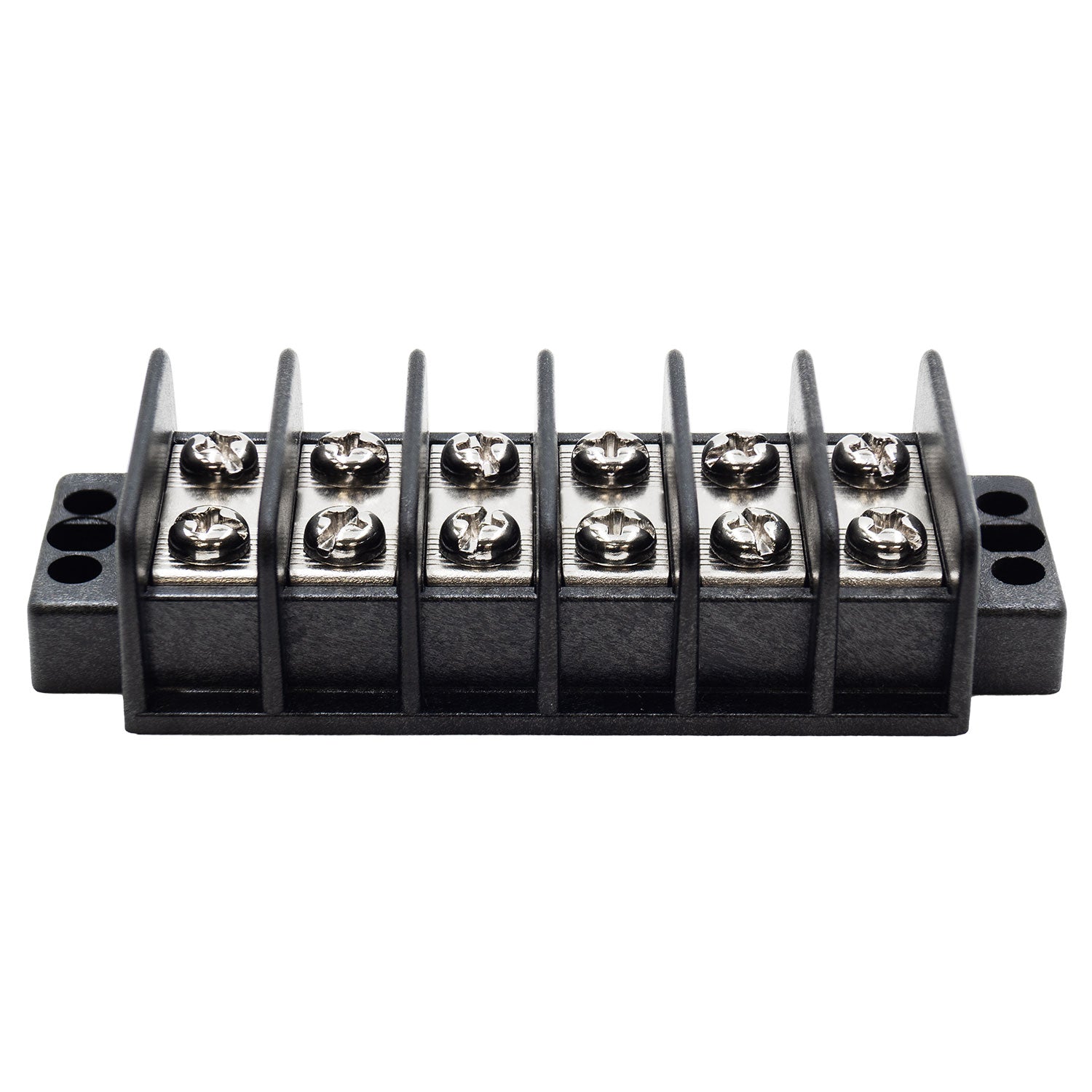

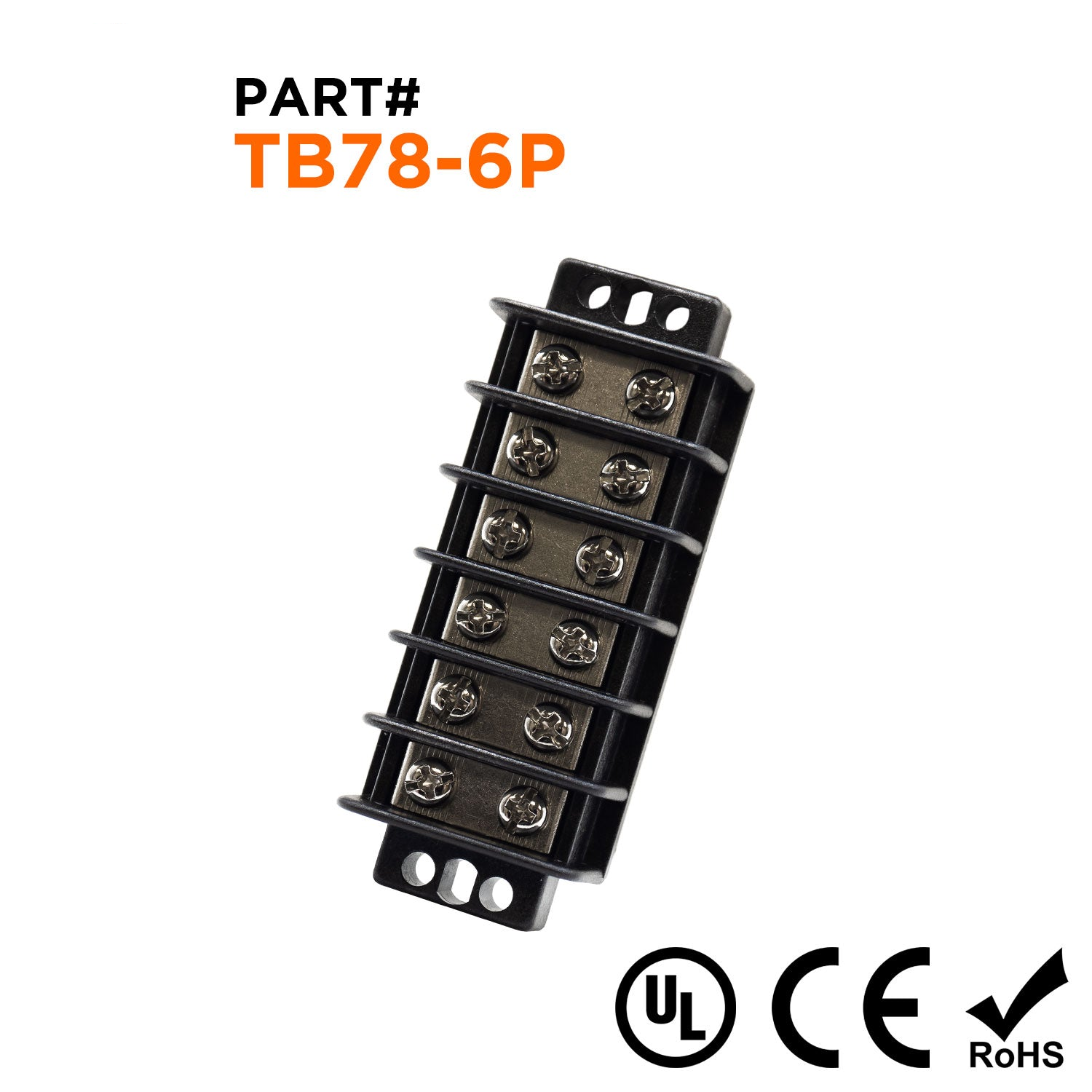

Procurement reference model: TB78-6P. Number of Poles: 6 Poles; Pitch: 11.1mm (0.44"); A: 77.7mm (3.06"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 1 · source pack reference |
| Number of Poles | 6 Poles |
| Pitch | 11.1mm (0.44") |
| A | 77.7mm (3.06") |
| B | 85.9mm (3.38") |
| Material | Thermoplastic UL94-V0 |
| Electrical Rating | 300 Volts |
| Amp Rating | 20AMP |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
