Technical reference

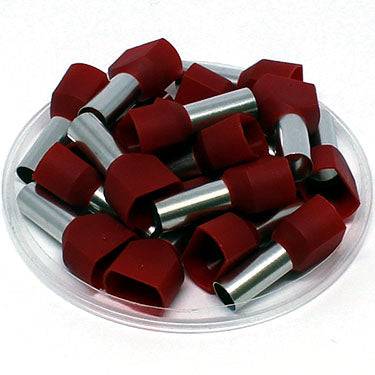

Procurement reference model: TD100018. Wire Size: 2x8 AWG; Color: Red; E: 7.8mm (0.30"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Size | 2x8 AWG |
| Color | Red |
| E | 7.8mm (0.30") |
| D1 | 6.5mm (0.26") |
| D2 | 12.6mm (0.50") |
| L1 | 30.6mm (1.20") |
| L2 | 18.0mm (0.71") |
| S1 | 0.3mm (0.01") |
| Material | Tin Plated Copper |
| Max Electrical Rating | 105°C (221°F) 600 Volts |
| Max Electrical Current | 70A |
| UL Approved | No |
| CE Certified | Yes |
| RoHS Compliant | Yes |
| Pin Length | 18 mm |
| Conductor size | 2x8 AWG (2x10.00mm²) |

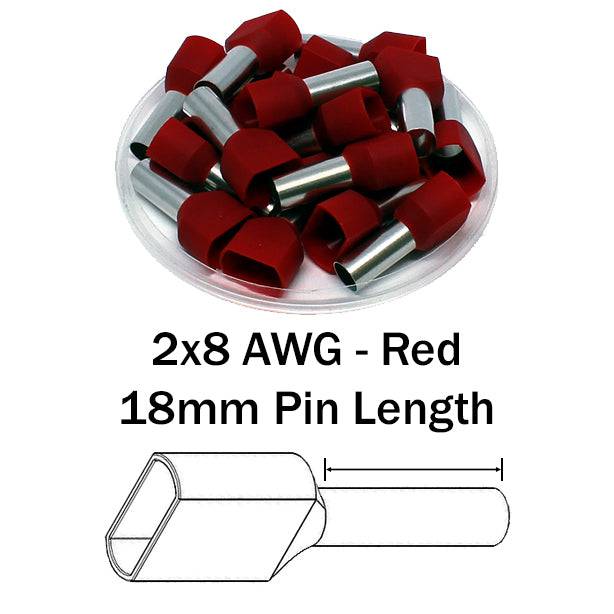

Drawings and product details
