Technical reference

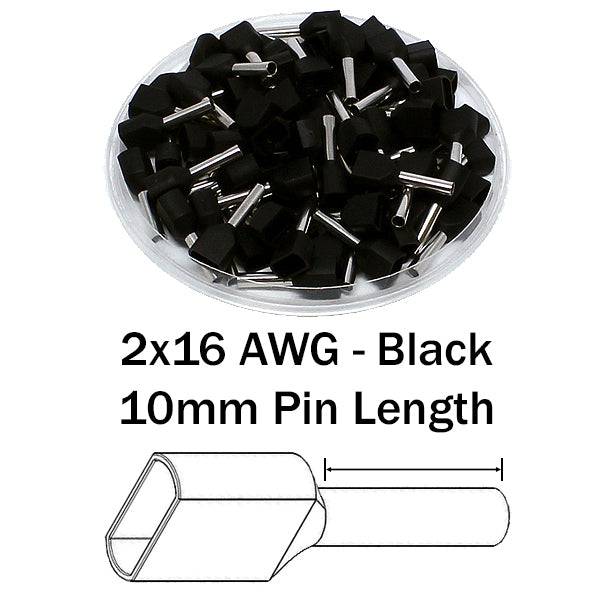

Procurement reference model: TD15010. Wire Size: 2x16 AWG; Color: Black; E: 3.6mm (0.14"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 500 · source pack reference |
| Wire Size | 2x16 AWG |
| Color | Black |
| E | 3.6mm (0.14") |
| D1 | 2.2mm (0.09") |
| D2 | 6.2mm (0.24") |
| L1 | 17.5mm (0.69") |
| L2 | 10.0mm (0.39") |
| S1 | 0.2mm (0.008") |
| Max Electrical Rating | 105 o C (221 o F) - 600 Volts |
| Max Electrical Current | 18A |
| Material | Tin Plated Copper |
| UL Approved | No |
| CE Certified | Yes |
| RoHS Compliant | Yes |
| Pin Length | 10 mm |
| Conductor size | 2x16 AWG (2x1.50mm²) |
Drawings and product details
