Technical reference

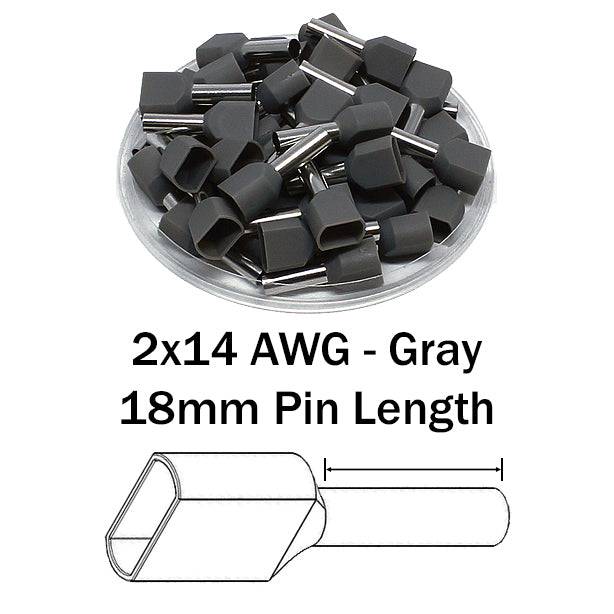

Procurement reference model: TT25018. Wire Size: 2x14 AWG; Color: Gray; E: 4.4mm (0.17"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Size | 2x14 AWG |
| Color | Gray |
| E | 4.4mm (0.17") |
| D1 | 2.9mm (0.11") |
| D2 | 7.8mm (0.31") |
| L1 | 26.5mm (1.04") |
| L2 | 18.0mm (0.71") |
| S1 | 0.3mm (0.01") |
| Max Electrical Rating | 105 o C (221 o F) - 600 Volts |
| Max Electrical Current | 30A |
| Material | Tin-Plated Copper |
| UL Approved | No |
| CE Certified | Yes |
| RoHS Compliant | Yes |
| Pin Length | 18 mm |
| Conductor size | 2x14 AWG (2x2.50mm²) |
