Technical reference

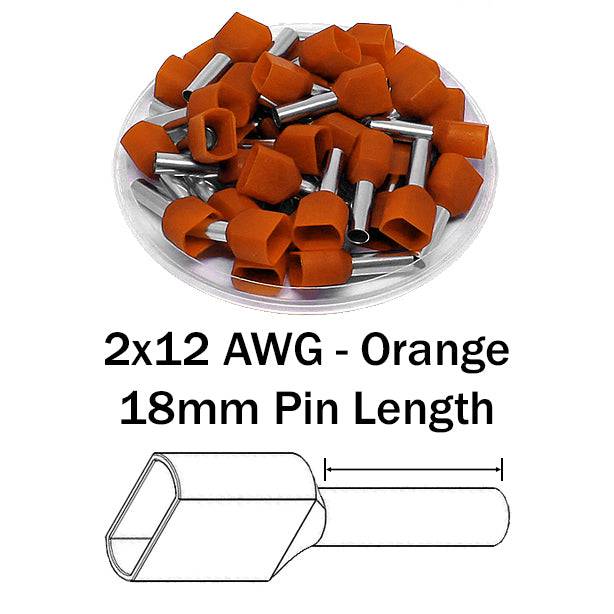

Procurement reference model: TT40018. Wire Size: 2x12 AWG; Color: Orange; E: 5.3mm (0.21"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Size | 2x12 AWG |
| Color | Orange |
| E | 5.3mm (0.21") |
| D1 | 3.8mm (0.15") |
| D2 | 8.5mm (0.33") |
| L1 | 29.1mm (1.15") |
| L2 | 18.0mm (0.71") |
| S1 | 0.3mm (0.01") |
| Max Electrical Rating | 105 o C (221 o F) - 600 Volts |
| Max Electrical Current | 35A |
| Material | Tin-Plated Copper |
| UL Approved | No |
| CE Certified | Yes |
| RoHS Compliant | Yes |
| Pin Length | 18 mm |
| Conductor size | 2x12 AWG (2x4.00mm²) |
Drawings and product details
