Technical reference

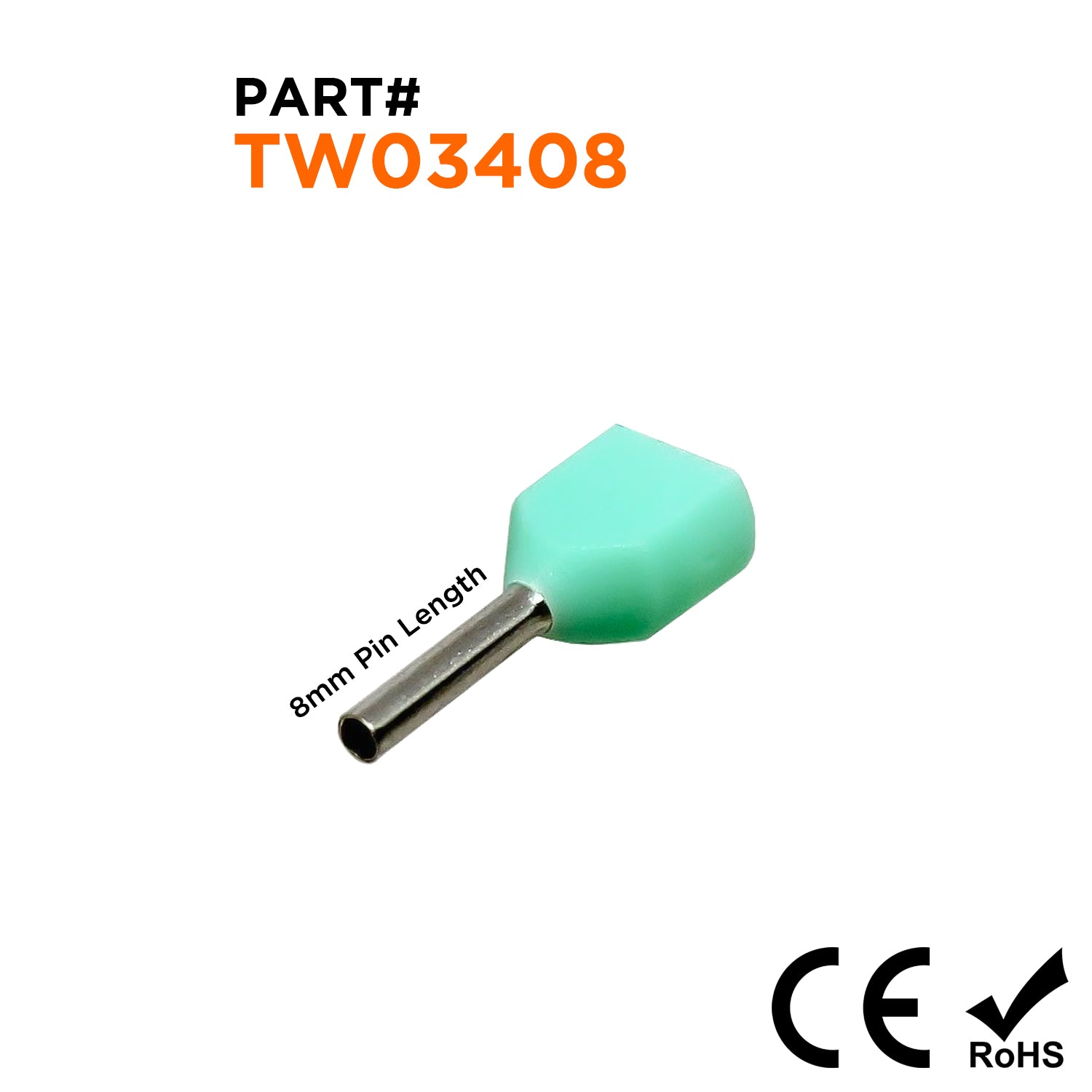

Procurement reference model: TW03408. Wire Size: 2x24 & 2x22 AWG; Color: Turquoise; E: 2.5mm (0.09"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 500 · source pack reference |
| Wire Size | 2x24 & 2x22 AWG |
| Color | Turquoise |
| E | 2.5mm (0.09") |
| D1 | 1.2mm (0.04") |
| D2 | 4.9mm (0.19") |
| L1 | 14.7mm (0.57") |
| L2 | 8.0mm (0.32") |
| S1 | 0.20mm (0.01") |
| Material | Tin Plated Copper |
| Max Electrical Rating | 105°C (221°F) 600 Volts |
| Max Electrical Current | 12A |
| UL Approved | No |
| CE Certified | Yes |
| RoHS Compliant | Yes |
| Pin Length | 8 mm |
| Conductor size | 2x22 AWG (2x0.34mm²) |
