Technical reference

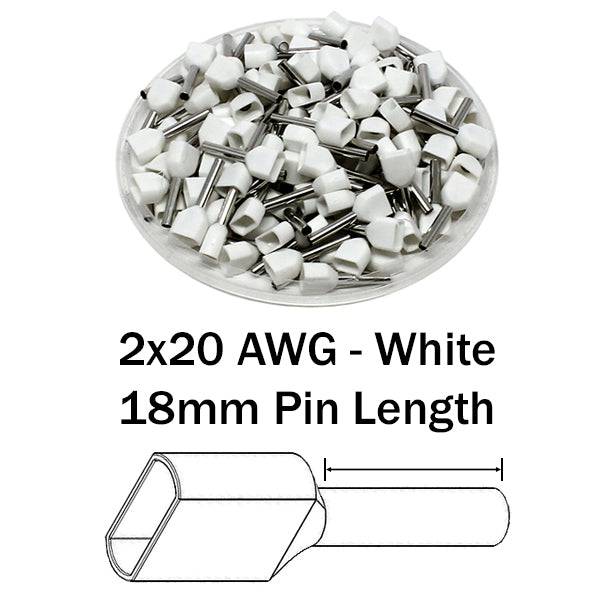

Procurement reference model: TW07518. Wire Size: 2x20 AWG; Color: White; E: 3.0mm (0.12"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 500 · source pack reference |
| Wire Size | 2x20 AWG |
| Color | White |
| E | 3.0mm (0.12") |
| D1 | 1.7mm (0.07") |
| D2 | 5.4mm (0.21") |
| L1 | 24.5mm (0.96") |
| L2 | 18.0mm (0.71") |
| S1 | 0.3mm (0.01") |
| Max Electrical Rating | 105 o C (221 o F) - 600 Volts |
| Max Electrical Current | 12A |
| Material | Tin-Plated Copper |
| UL Approved | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
| Pin Length | 18 mm |
| Conductor size | 2x20 AWG (2x0.75mm²) |
