Technical reference

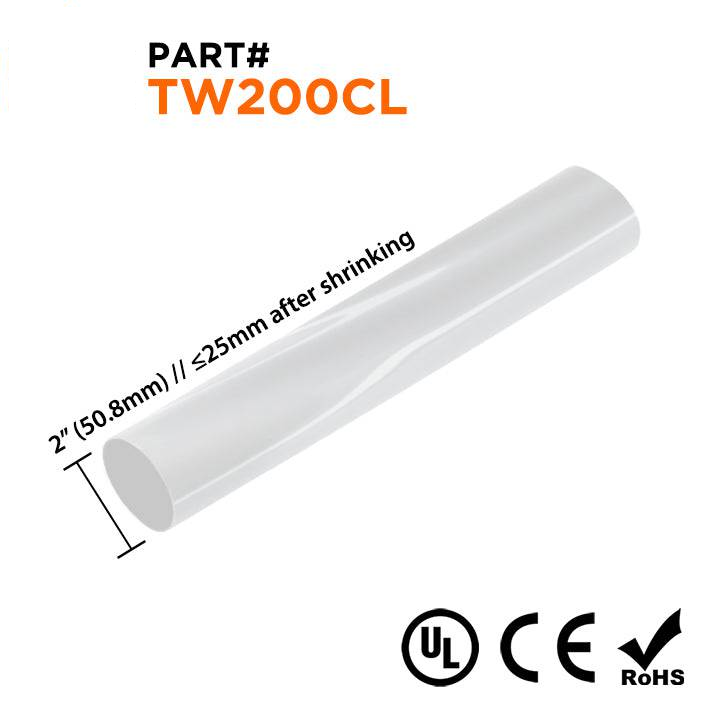

Procurement reference model: TW200CL. Color: Clear; Shrink Ratio: 2:1 Ratio; Size (Before Shrinking): 2" (50.8mm). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | length / roll |
|---|---|
| Reference pack size | 1 · source pack reference |
| Color | Clear |
| Shrink Ratio | 2:1 Ratio |
| Size (Before Shrinking) | 2" (50.8mm) |
| Size (After Shrinking) | 1" (25.4mm) |
| Wall Thickness | 1.00mm ±0.15 |
| Material | Flexible Polyolefin (PO) |
| Shrink Temperature | >158°F (70°C) |
| Operating Temperature | -67°F to 275°F (-55°C to 135°C) |
| Voltage Rating | 600 Volts |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
