Technical reference

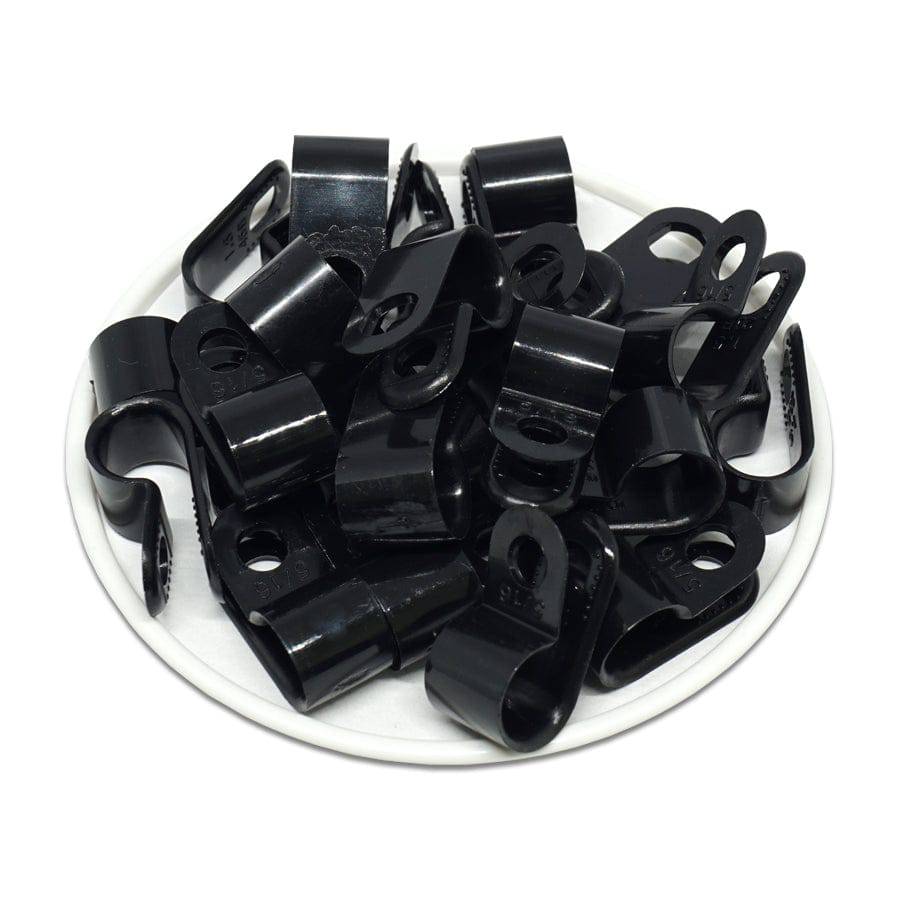

Procurement reference model: UC1.5B. Size: 22.6 x 10mm (0.89 x 0.39"); Color: Black; A: 5.0mm (0.20"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Size | 22.6 x 10mm (0.89 x 0.39") |
| Color | Black |
| A | 5.0mm (0.20") |
| B | 11.2mm (0.44") |
| C | 10mm (0.39") |

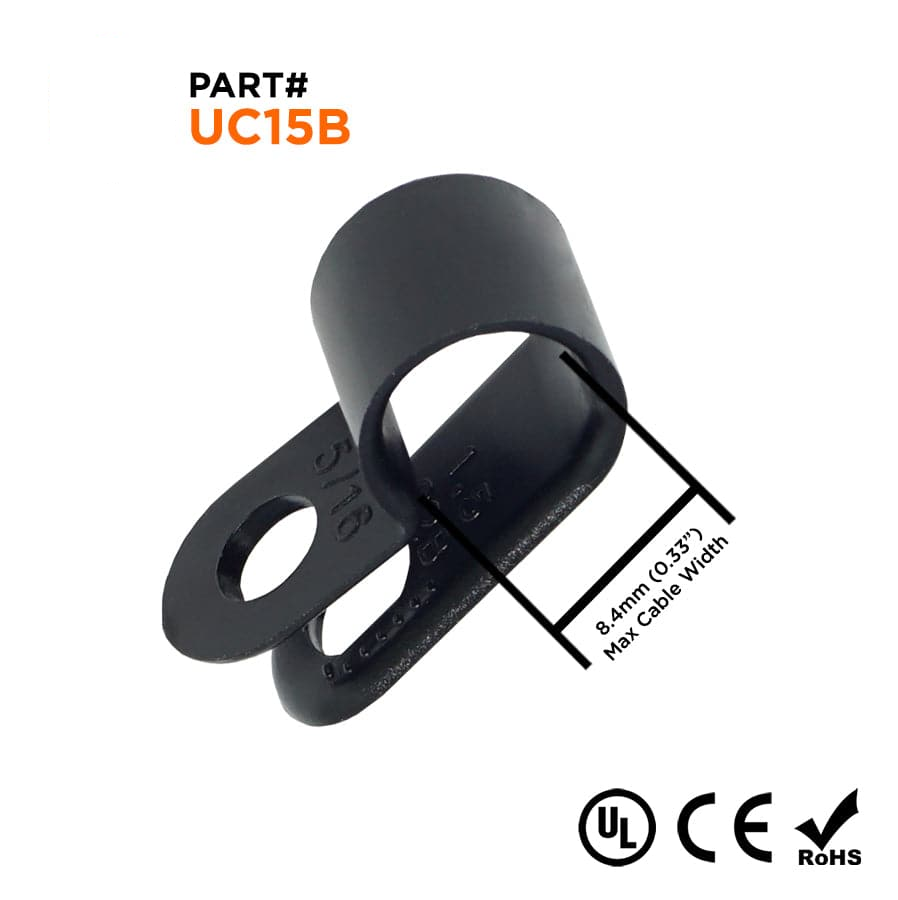

| D | 8.4mm (0.33") |
| E | 22.6mm (0.89") |
| F | 1.15mm (0.045") |
| Bundle Diameter | 7.9mm (5/16") |
| Material | UL Approved 94UV-2 Nylon 6/6 |
| Service Temperature | -40°F to 185°F (-40°C to 85°F) |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
