Technical reference

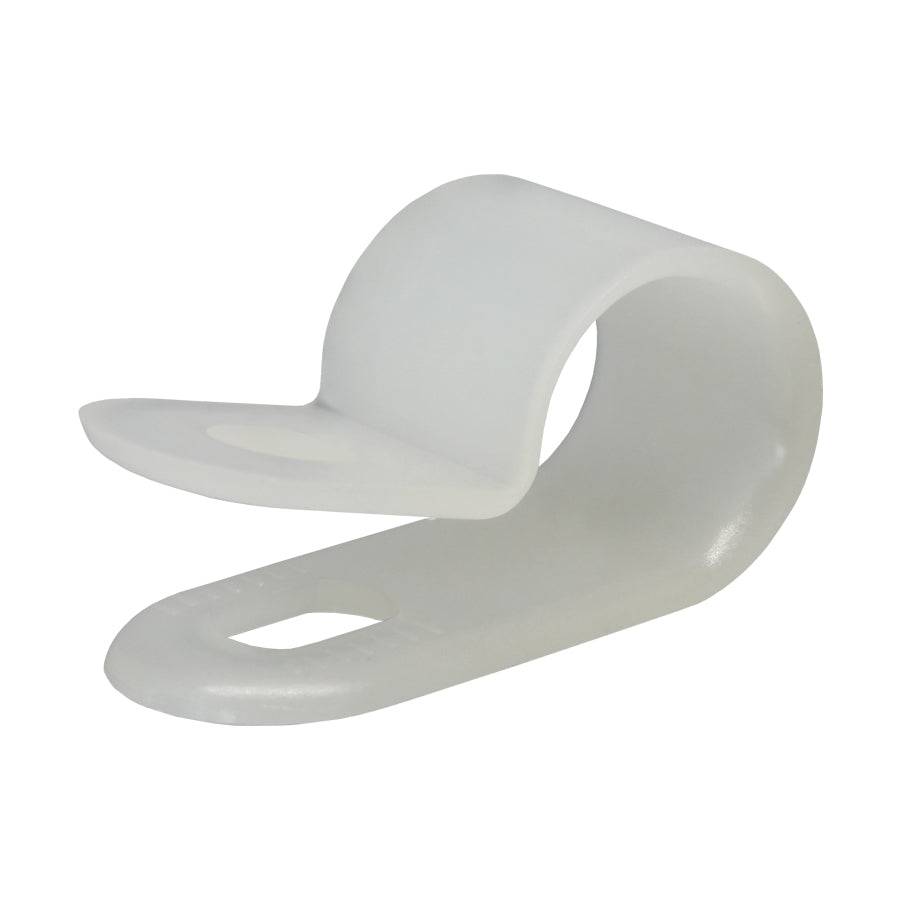

Procurement reference model: UC2N. Size: 26.6 x 12.3mm (1.04 x 0.48"); Color: Natural; A: 5.0mm (0.20"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Size | 26.6 x 12.3mm (1.04 x 0.48") |
| Color | Natural |
| A | 5.0mm (0.20") |
| B | 12.5mm (0.49") |
| C | 12.3mm (0.48") |
| D | 10.8mm (0.43") |
| E | 26.6mm (1.04") |
| F | 1.40mm (0.055") |
| Bundle Diameter | 9.5mm (3/8") |
| Material | UL Approved 94UV-2 Nylon 6/6 |
| Service Temperature | -40°F to 185°F (-40°C to 85°F) |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
