Technical reference

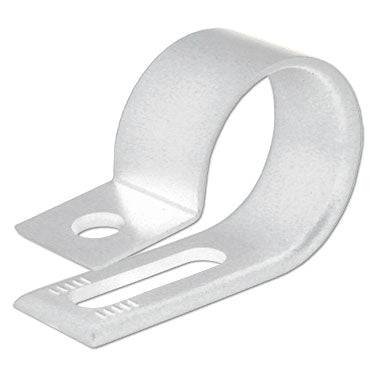

Procurement reference model: UC6.5N. Size: 51.5 x 12.6mm (2.03 x 0.50"); Color: Natural; A: 4.8mm (0.19"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Size | 51.5 x 12.6mm (2.03 x 0.50") |
| Color | Natural |
| A | 4.8mm (0.19") |
| B | 26mm (1.02") |
| C | 12.6mm (0.50") |
| D | 30.6mm (1.2") |
| E | 51.5mm (2.03") |
| F | 1.70mm (0.07") |
| Bundle Diameter | 27.5mm (1-1/16") |
| Material | UL Approved 94UV-2 Nylon 6/6 |
| Service Temperature | -40°F to 185°F (-40°C to 85°F) |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
