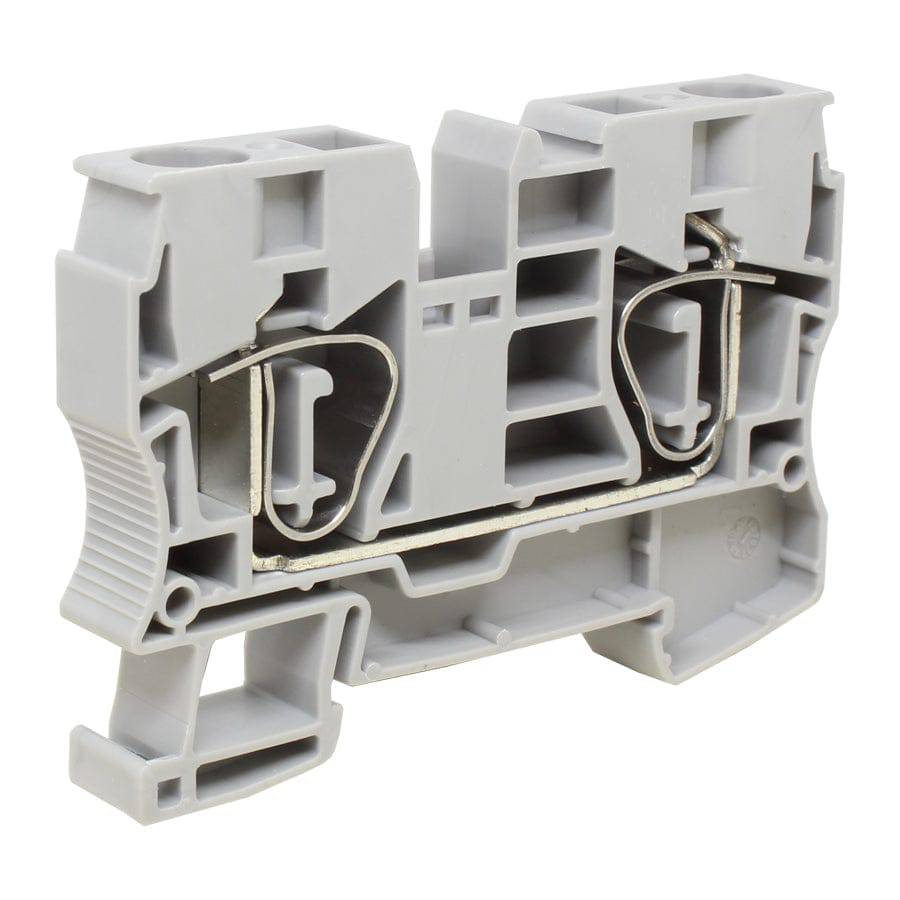

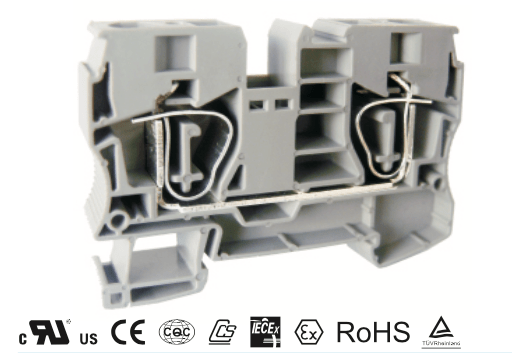

Procurement reference model: UJ5-10. Wire Range (Stranded): 16 to 8 AWG (1.50mm to 10.00mm); Wire Range (Solid): 16 to 6 AWG (1.50mm to 16.00mm); Stripping Length: 0.71" (18mm). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 1 · source pack reference |
| Wire Range (Stranded) | 16 to 8 AWG (1.50mm to 10.00mm) |
| Wire Range (Solid) | 16 to 6 AWG (1.50mm to 16.00mm) |
| Stripping Length | 0.71" (18mm) |
| Connection Method | Spring-Cage Connection |
| Operating Temperature | -40 °F to +221°F (-40 °C to +105°C) |
| Ambient Temperature | -77 °F to +140°F (-25 °C to +60°C) |
| Relative Humidity | 30% to 90% |
| Connection Standard | IEC 60947-7-1 |
| Width | 2.82" (71.6mm) |
| Thickness | 0.40" (10.2mm) |
| Height | 1.95" (49.6mm) |
| Number of Connections | 2 |
| Rated Cross Section (mm) | 16 |
| Color | Gray |
| Insulation Material | PA (Nylon) |
| Flame Retardant Grade | V0 (UL94) |
| Rated Voltage (V) | 800v |
| Rated Current (A) | 65a |
| Temperature of Insulation Material | -40 °F to +257°F (-40 °C to +125°C) |
| Wire Feed | Above the terminal |
| Mounting Rail | TH35-7.5 & TH35-15 |
| End Cover | UJ5-10G |
| Jumpers (2 Position) | UFBS2-10 |
| Center Marker Strip (Blank) | UZB10-10(Blank) |
| Center Marker Strip (Horizontal) | UZB10-10(Horizontal) |
| Center Marker Strip (Vertical) | UZB10-10(Vertical) |
| Side Marker Strip (Blank) | UBFM8(Blank) |
| Side Marker Strip (Horizontal) | UBFM8(Horizontal) |
| Side Marker Strip (Vertical) | UBFM8(Vertical) |
| Screwdriver | YB1.0x5.0 |
