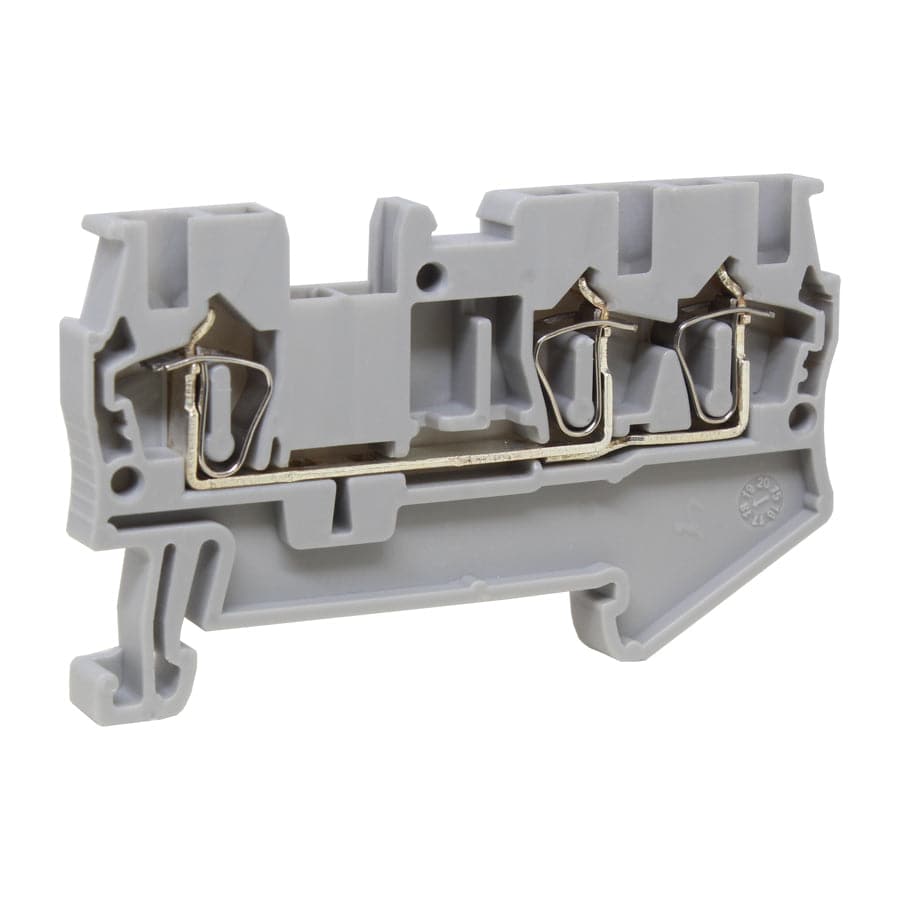

Procurement reference model: UJ5-2.5/1X2. Wire Range (Stranded): 24 to 14 AWG (0.20mm to 2.50mm); Wire Range (Solid): 24 to 12 AWG (0.20mm to 4.00mm); Stripping Length: 0.39" (10mm). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 1 · source pack reference |
| Wire Range (Stranded) | 24 to 14 AWG (0.20mm to 2.50mm) |
| Wire Range (Solid) | 24 to 12 AWG (0.20mm to 4.00mm) |
| Stripping Length | 0.39" (10mm) |
| Connection Method | Spring-Cage Connection |
| Operating Temperature | -40 °F to +221°F (-40 °C to +105°C) |
| Ambient Temperature | -77 °F to +140°F (-25 °C to +60°C) |
| Relative Humidity | 30% to 90% |
| Connection Standard | IEC 60947-7-1 |
| Width | 2.38" (60.4mm) |
| Thickness | 0.20" (5.2mm) |
| Height | 1.39" (35.2mm) |
| Number of Connections | 3 |
| Rated Cross Section (mm) | 4 |
| Color | Gray |
| Insulation Material | PA (Nylon) |
| Flame Retardant Grade | V0 (UL94) |
| Rated Voltage (V) | 800v |
| Rated Current (A) | 28a |
| Temperature of Insulation Material | -40 °F to +257°F (-40 °C to +125°C) |
| Wire Feed | Above the terminal |
| Mounting Rail | TH35-7.5 & TH35-15 |
| End Cover | UJ5-1.5/2.5/1×2G |
| Partition Plate | UJ5-1.5-4/1×2FG |
| Spacer Plate | UJ5-2.5LG/RG |
| Jumpers (2 Position) | UFBS2-5 |
| Jumpers (3 Position) | UFBS3-5 |
| Jumpers (4 Position) | UFBS4-5 |
| Jumpers (5 Position) | UFBS5-5 |
| Jumpers (10 Position) | UFBS10-5 |
| Jumpers (20 Position) | UFBS20-5 |
| Jumpers (30 Position) | UFBS30-5 |
| Center Marker Strip (Blank) | UZB5-10(Blank) |
| Center Marker Strip (Horizontal) | UZB5-10(Horizontal) |
| Center Marker Strip (Vertical) | UZB5-10(Vertical) |
| Side Marker Strip (Blank) | UBFM5(Blank) |
| Side Marker Strip (Horizontal) | UBFM5(Horizontal) |
| Side Marker Strip (Vertical) | UBFM5(Vertical) |
| Screwdriver | YB0.6x3.5 |
