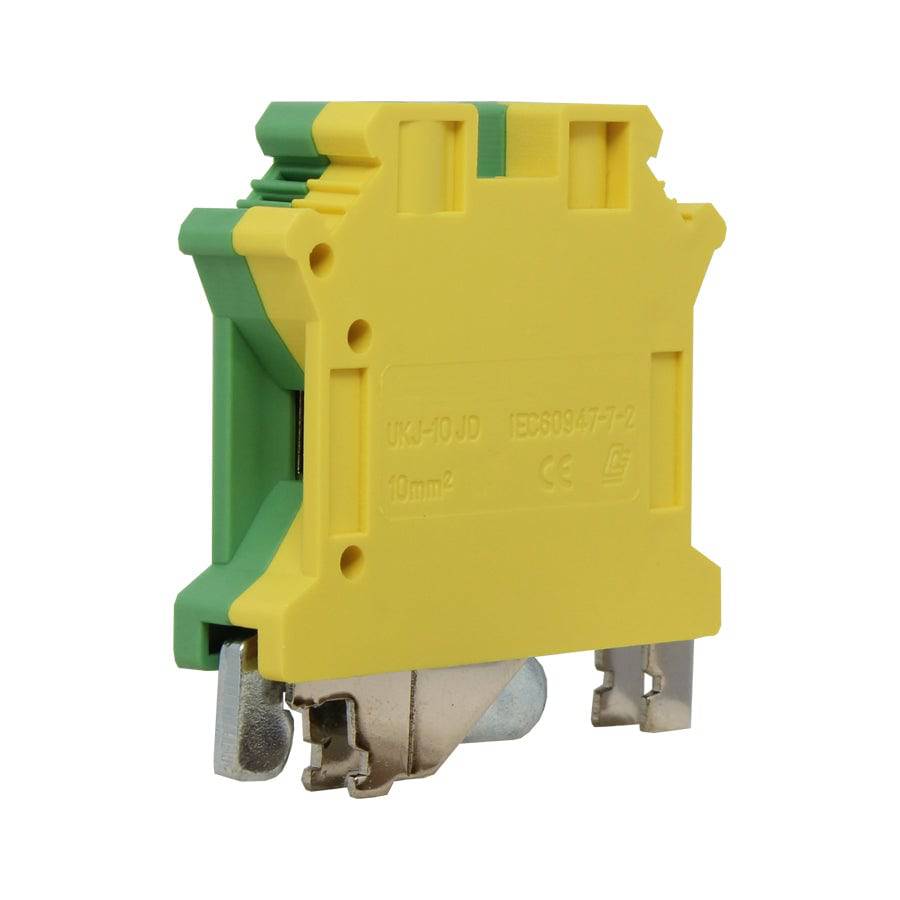

Procurement reference model: UKJ-10JD. Wire Range (Stranded): 22 to 8 AWG (0.50mm2 to 10.00mm2); Wire Range (Solid): 22 to 6 AWG (0.50mm2 to 16.00mm2); Stripping Length: 0.51" (10mm). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 1 · source pack reference |
| Wire Range (Stranded) | 22 to 8 AWG (0.50mm2 to 10.00mm2) |
| Wire Range (Solid) | 22 to 6 AWG (0.50mm2 to 16.00mm2) |
| Stripping Length | 0.51" (10mm) |
| Screw Thread | M4 |
| Tightening Torque | 1.5 to 1.8 |
| Connection Method | Screw Connection |
| Operating Temperature | -40 °F to +221°F (-40 °C to +105°C) |
| Ambient Temperature | -77 °F to +140°F (-25 °C to +60°C) |
| Relative Humidity | 30% to 90% |
| Connection Standard | IEC 60947-7-1 |
| Width | 1.67" (42.5mm) |
| Thickness | 0.40" (10.2mm) |
| Height | 1.81" (46.0mm) |
| Number of Connections | 2 |
| Rated Cross Section (mm) | 16 |
| Color | Yellow-Green |
| Insulation Material | PA (Nylon) |
| Flame Retardant Grade | V0 (UL94) |
| Temperature of Insulation Material | -40°F to +257°F (-40°C to +125°C) |
| Wire Feed | Both sides of terminal |
