Technical reference

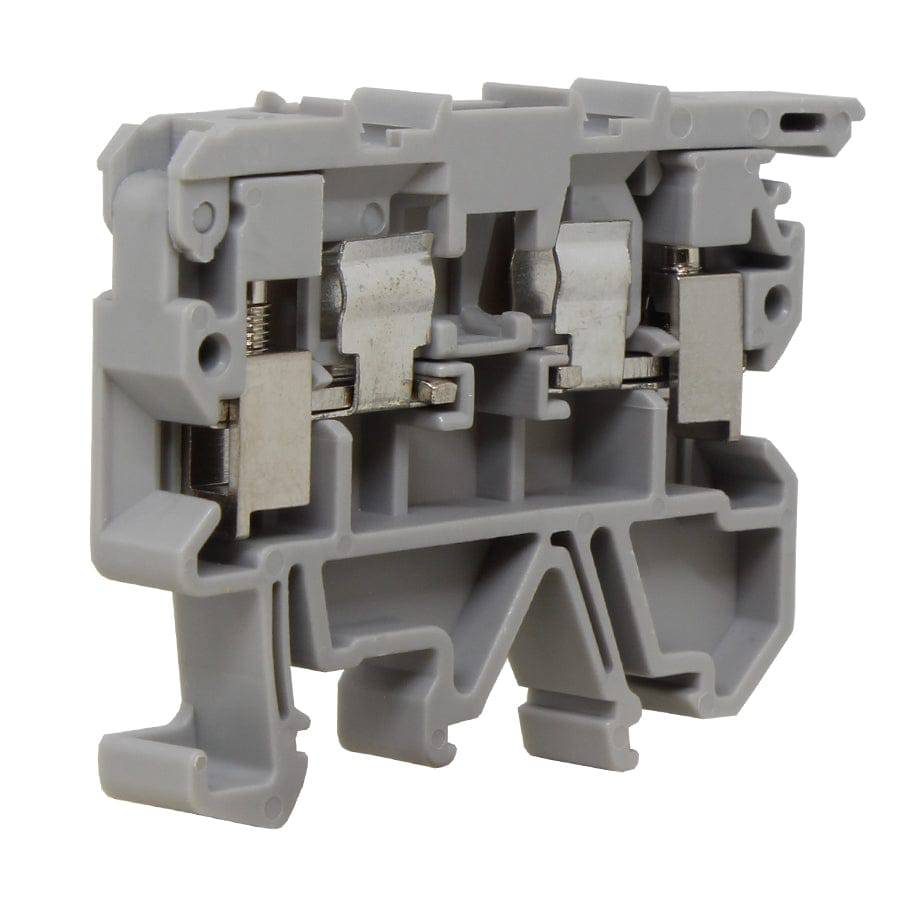

Procurement reference model: UKJ-2.5RD. Size: 2.5mm / 14 AWG; Type: Fuse; Color: Gray. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 1 · source pack reference |
| Size | 2.5mm / 14 AWG |
| Type | Fuse |
| Color | Gray |
| Termination Style | Screw |
| Width / Thickness / Height (mm) | 58.5 / 8 / 43.5 |
| Flammability | UL94 V-2 |
| Screw Thread | M3 |
| Tighting Torque (Nm) | 0.6-0.8 |
| Stripping Length (mm) | 10 |
| Voltage (V) | 500 |
| Max Operating Current (A) | 6.3 |
| Cross Section (mm 2 ) | 2.5 |
Drawings and product details
