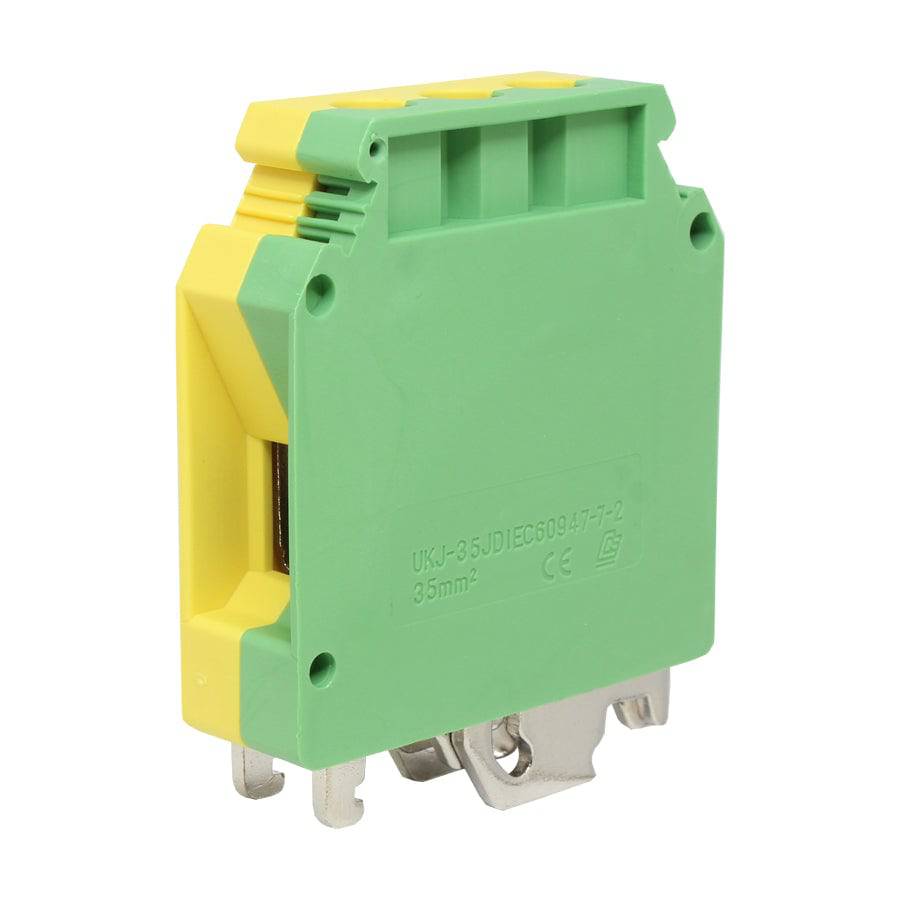

Procurement reference model: UKJ-35JD. Wire Range (Stranded): 19 to 2 AWG (0.75mm2 to 35.00mm2); Wire Range (Solid): 19 to 1-1/0 AWG (0.75mm2 to 50.00mm2); Stripping Length: 0.59" (15mm). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 1 · source pack reference |
| Wire Range (Stranded) | 19 to 2 AWG (0.75mm2 to 35.00mm2) |
| Wire Range (Solid) | 19 to 1-1/0 AWG (0.75mm2 to 50.00mm2) |
| Stripping Length | 0.59" (15mm) |
| Screw Thread | M6 |
| Tightening Torque | 3.2 to 3.7 |
| Connection Method | Screw Connection |
| Operating Temperature | -40 °F to +221°F (-40 °C to +105°C) |
| Ambient Temperature | -77 °F to +140°F (-25 °C to +60°C) |
| Relative Humidity | 30% to 90% |
| Connection Standard | IEC 60947-7-1 |
| Width | 1.98" (50.2mm) |
| Thickness | 0.59" (15.0mm) |
| Height | 2.40" (61.0mm) |
| Number of Connections | 2 |
| Rated Cross Section (mm) | 50 |
| Color | Yellow-Green |
| Insulation Material | PA (Nylon) |
| Flame Retardant Grade | V0 (UL94) |
| Temperature of Insulation Material | -40°F to +257°F (-40°C to +125°C) |
| Wire Feed | Both sides of terminal |
| Mounting Rail (Top Hat Type) | TH35-7.5 & TH35-15 |
| Mounting Rail (G-Type) | G32-15 & G32-18 |
| Marker Strip (Blank) | UZB10-10(Blank) |
| Marker Strip (Horizontal) | UZB10-10(Horizontally) |
| Marker Strip (Vertical) | UZB10-10(Vertically) |
| Screwdriver | YB1.0x6.5 |
