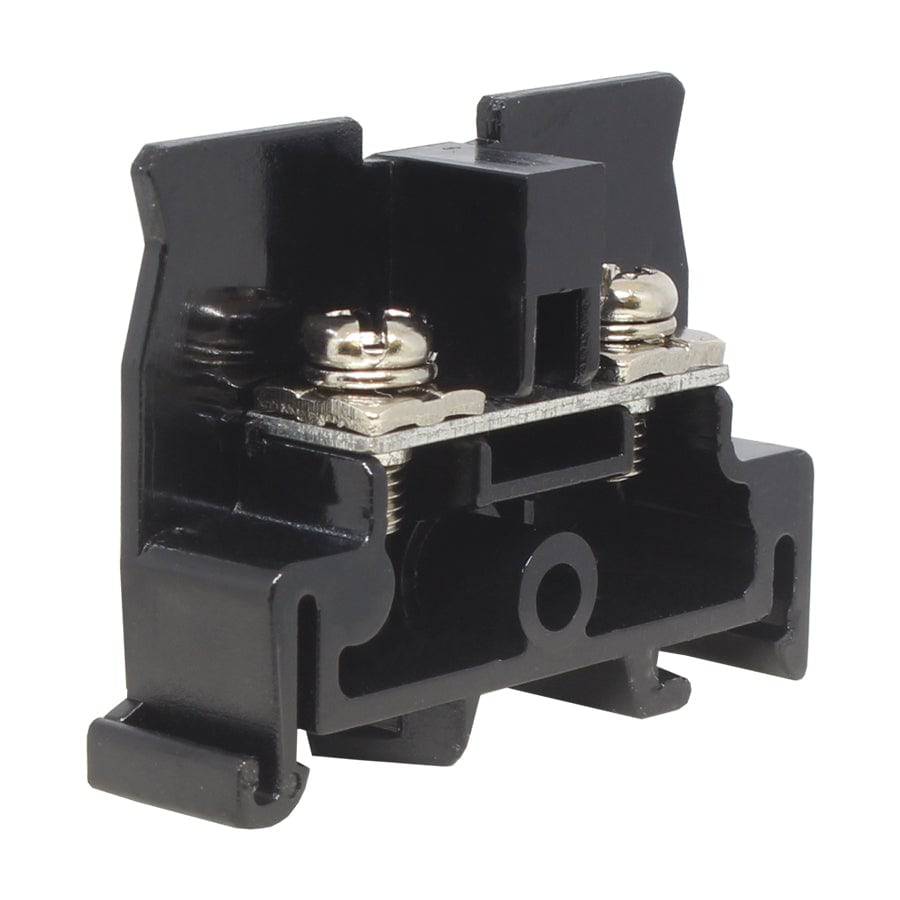

Procurement reference model: UTD-24. Wire Range (Stranded): 19 to 14 AWG (0.75mm to 2.50mm); Wire Range (Solid): 19 to 12 AWG (0.75mm to 4.00mm); Screw Thread: M3.5x8. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 1 · source pack reference |
| Wire Range (Stranded) | 19 to 14 AWG (0.75mm to 2.50mm) |
| Wire Range (Solid) | 19 to 12 AWG (0.75mm to 4.00mm) |
| Screw Thread | M3.5x8 |
| Tightening Torque | 1.0-1.3 |
| Connection Method | Screw Connection |
| Operating Temperature | -40 °F to +221°F (-40 °C to +105°C) |
| Ambient Temperature | -77 °F to +140°F (-25 °C to +60°C) |
| Relative Humidity | 30% to 90% |
| Connection Standard | IEC 60947-7-1 |
| Width | 1.57" (40.0mm) |
| Thickness | 0.37" (9.5mm) |
| Height | 1.14" (29.0mm) |
| Number of Connections | 2 |
| Rated Cross Section (mm) | 4 |
| Color | Black |
| Insulation Material | PA (Nylon) |
| Flame Retardant Grade | V0 (UL94) |
| Rated Voltage (V) | 660v |
| Rated Current (A) | 32a |
| Temperature of Insulation Material | -40 °F to +257°F (-40 °C to +125°C) |
| Wire Feed | Terminal side |
| Mounting Rail (Top Hat Type) | TH35-7.5 & TH35-15 |
| Mounting Rail (Top Hat Style) | TH35-7.5L & C25-10L |
| End Cover | UTD-10G |
| Insertion Bridge (2 Position) | UEB2-9.5B |
| Insertion Bridge (3 Position) | UEB3-9.5B |
| Insertion Bridge (4 Position) | UEB4-9.5B |
| Insertion Bridge (5 Position) | UEB5-9.5B |
| Insertion Bridge (6 Position) | UEB6-9.5B |
| Insertion Bridge (10 Position) | UEB10-9.5B |
| Marker Strip (10 Terminals) | UTD-24B/10P |
| Marker Strip (Comb. of N Terminals) | UTD-ZB |
| Covering Hood | UTD-10/32F |
