Технические данные для сверки

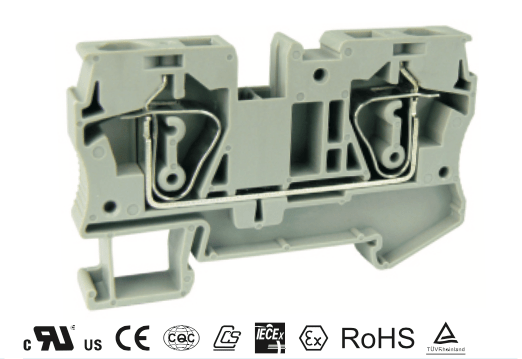

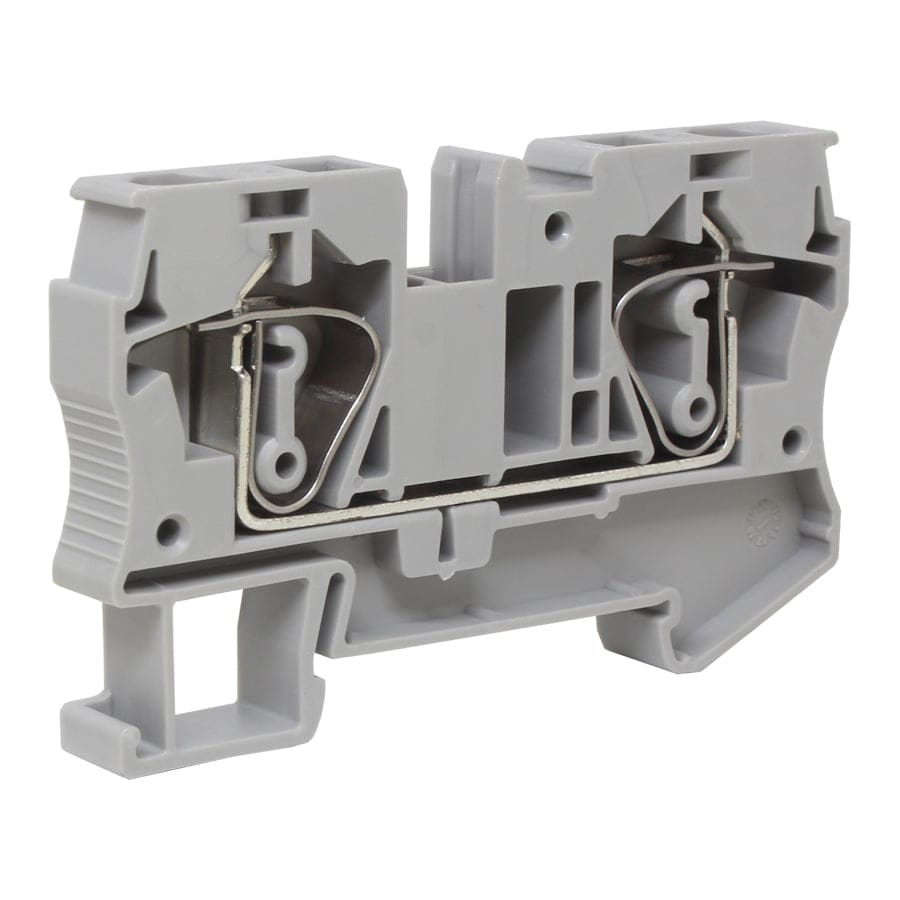

Модель для запроса: UJ5-6. Wire Range (Stranded): 22 до 10 AWG (0.50mm до 6.00mm); Wire Range (Solid): 22 до 8 AWG (0.50mm до 10.00mm); Stripping Length: 0.47" (12mm). Согласуйте характеристики поставляемого аналога перед заказом.
| Единица заказа | шт. |
|---|---|
| Количество в исходной упаковке | 1 · исходная упаковка |
| Wire Range (Stranded) | 22 до 10 AWG (0.50mm до 6.00mm) |
| Wire Range (Solid) | 22 до 8 AWG (0.50mm до 10.00mm) |
| Stripping Length | 0.47" (12mm) |
| Connection Method | Spring-Cage Connection |
| Рабочая температура | -40 °F до +221°F (-40 °C до +105°C) |
| Ambient Temperature | -77 °F до +140°F (-25 °C до +60°C) |
| Relative Humidity | 30% до 90% |
| Connection Standard | IEC 60947-7-1 |
| Ширина | 2.74" (69.5mm) |
| Толщина | 0.32" (8.2mm) |
| Высота | 1.66" (42.2mm) |
| Number of Connections | 2 |
| Rated Cross Section (mm) | 10 |
| Цвет | Серый |
| Материал изоляции | PA (Nylon) |
| Flame Retardant Grade | V0 (UL94) |
| Rated Voltage (V) | 800v |
| Rated Current (A) | 52a |
| Temperature of Insulation Material | -40 °F до +257°F (-40 °C до +125°C) |
| Wire Feed | Above the terminal |
| Mounting Rail | TH35-7.5 & TH35-15 |
| End Cover | UJ5-6G |
| Partition Plate | UJ5-6FG |
| Jumpers (2 Position) | UFBS2-8 |
| Jumpers (3 Position) | UFBS3-8 |
| Jumpers (4 Position) | UFBS4-8 |
| Jumpers (5 Position) | UFBS5-8 |
| Jumpers (10 Position) | UFBS10-8 |
| Center Marker Strip (Blank) | UZB8-10(Blank) |
| Center Marker Strip (Horizontal) | UZB8-10(Horizontal) |
| Center Marker Strip (Vertical) | UZB8-10(Vertical) |
| Side Marker Strip (Blank) | UBFM8(Blank) |
| Side Marker Strip (Horizontal) | UBFM8(Horizontal) |
| Side Marker Strip (Vertical) | UBFM8(Vertical) |
| Screwdriver | YB0.6x4.0 |
