Технические данные для сверки

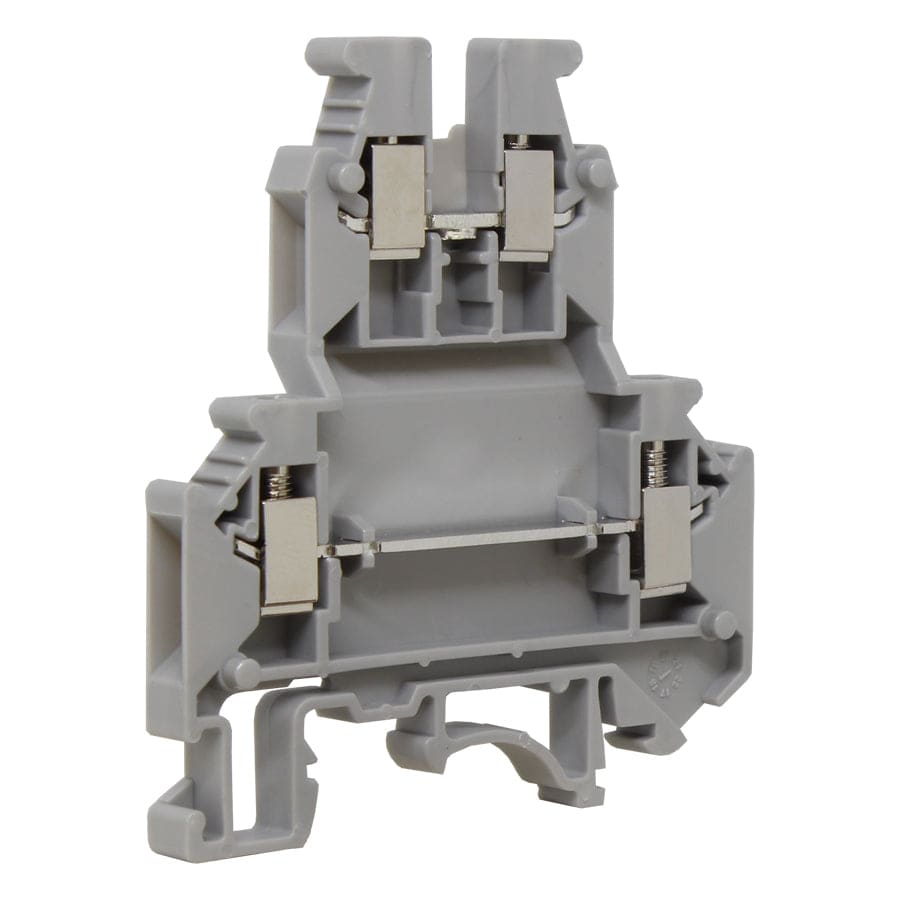

Модель для запроса: UKJ-2.5/2-2. Wire Range (Stranded): 24 до 14 AWG (0.20mm2 до 2.50mm2); Wire Range (Solid): 24 до 12 AWG (0.20mm2 до 4.00mm2); Stripping Length: 0.28" (7mm). Согласуйте характеристики поставляемого аналога перед заказом.
| Единица заказа | шт. |
|---|---|
| Количество в исходной упаковке | 1 · исходная упаковка |
| Wire Range (Stranded) | 24 до 14 AWG (0.20mm2 до 2.50mm2) |
| Wire Range (Solid) | 24 до 12 AWG (0.20mm2 до 4.00mm2) |
| Stripping Length | 0.28" (7mm) |
| Screw Thread | M3 |
| Tightening Torque | 0.6 до 0.8 |
| Connection Method | Screw Connection |
| Рабочая температура | -40 °F до +221°F (-40 °C до +105°C) |
| Ambient Temperature | -77 °F до +140°F (-25 °C до +60°C) |
| Relative Humidity | 30% до 90% |
| Connection Standard | IEC 60947-7-1 |
| Ширина | 2.24" (56.8mm) |
| Толщина | 0.20" (5.2mm) |
| Высота | 2.40" (61.0mm) |
| Number of Connections | 2 |
| Rated Cross Section (mm) | 10 |
| Цвет | Серый |
| Материал изоляции | PA (Nylon) |
| Flame Retardant Grade | V0 (UL94) |
| Rated Voltage (V) | 500v |
| Rated Current (A) | 32a |
| Temperature of Insulation Material | -40°F до +257°F (-40°C до +125°C) |
| Wire Feed | Both sides of terminal |
| Mounting Rail (Top Hat Type) | TH35-7.5 & TH35-15 |
| Mounting Rail (G-Type) | G32-15 & G32-18 |
| End Cover | UKJ-4/2-2G |
| Blue Version | UKJ-4/2-2G(BU) |
| Spacer Plate | UKJ-4/2-2ZG |
| Separating Disk | UKJ-GP |
| Fixed Bridge (2 Position) | UFBI2-5 |
| Fixed Bridge (3 Position) | UFBI3-5 |
| Fixed Bridge (4 Position) | UFBI4-5 |
| Fixed Bridge (10 Position) | UFBI10-5 |
| Insulated Fixed Bridge (2 Position) | UFBI2-5N |
| Insulated Fixed Bridge (3 Position) | UFBI3-5N |
| Insulated Fixed Bridge (4 Position) | UFBI4-5N |
| Insulated Fixed Bridge (10 Position) | UFBI10-5N |
| Insertion Bridge (2 Position) | UEB2-5 |
| Insertion Bridge (3 Position) | UEB3-5 |
| Insertion Bridge (10 Position) | UEB10-5 |
| Marker Strip (Blank) | UZB5-10(Blank) |
| Marker Strip (Horizontal) | UZB5-10(Horizontal) |
| Marker Strip (Vertical) | UZB5-10(Vertical) |
| Screwdriver | YB0.6x3.5 |
