Технические данные для сверки
Модель для запроса: UTD-15. Wire Range (Stranded): 19 до 14 AWG (0.75mm до 2.00mm); Wire Range (Solid): 19 до 14 AWG (0.75mm до 2.00mm); Screw Thread: M3.5x8. Согласуйте характеристики поставляемого аналога перед заказом.
| Единица заказа | шт. |
|---|---|
| Количество в исходной упаковке | 1 · исходная упаковка |
| Wire Range (Stranded) | 19 до 14 AWG (0.75mm до 2.00mm) |
| Wire Range (Solid) | 19 до 14 AWG (0.75mm до 2.00mm) |
| Screw Thread | M3.5x8 |
| Tightening Torque | 1.0-1.3 |
| Connection Method | Screw Connection |
| Рабочая температура | -40 °F до +221°F (-40 °C до +105°C) |
| Ambient Temperature | -77 °F до +140°F (-25 °C до +60°C) |
| Relative Humidity | 30% до 90% |
| Connection Standard | IEC 60947-7-1 |
| Ширина | 1.57" (40.0mm) |
| Толщина | 0.31" (8.0mm) |
| Высота | 1.14" (29.0mm) |
| Number of Connections | 2 |
| Rated Cross Section (mm) | 2 |
| Цвет | Чёрный |
| Материал изоляции | PA (Nylon) |
| Flame Retardant Grade | V0 (UL94) |
| Rated Voltage (V) | 660v |
| Rated Current (A) | 20a |
| Temperature of Insulation Material | -40 °F до +257°F (-40 °C до +125°C) |
| Wire Feed | Terminal side |
| Mounting Rail (Top Hat Type) | TH35-7.5 & TH35-15 |
| Mounting Rail (Top Hat Style) | TH35-7.5L & C25-10L |
| End Cover | UTD-10G |
| Insertion Bridge (2 Position) | UEB2-8B |
| Insertion Bridge (3 Position) | UEB3-8B |
| Insertion Bridge (4 Position) | UEB4-8B |
| Insertion Bridge (5 Position) | UEB5-8B |
| Insertion Bridge (6 Position) | UEB6-8B |
| Insertion Bridge (10 Position) | UEB10-8B |
| Marker Strip (10 Terminals) | UTD-15B/10P |
| Marker Strip (Comb. of N Terminals) | UTD-ZB |
| Covering Hood | UTD-10/32F |

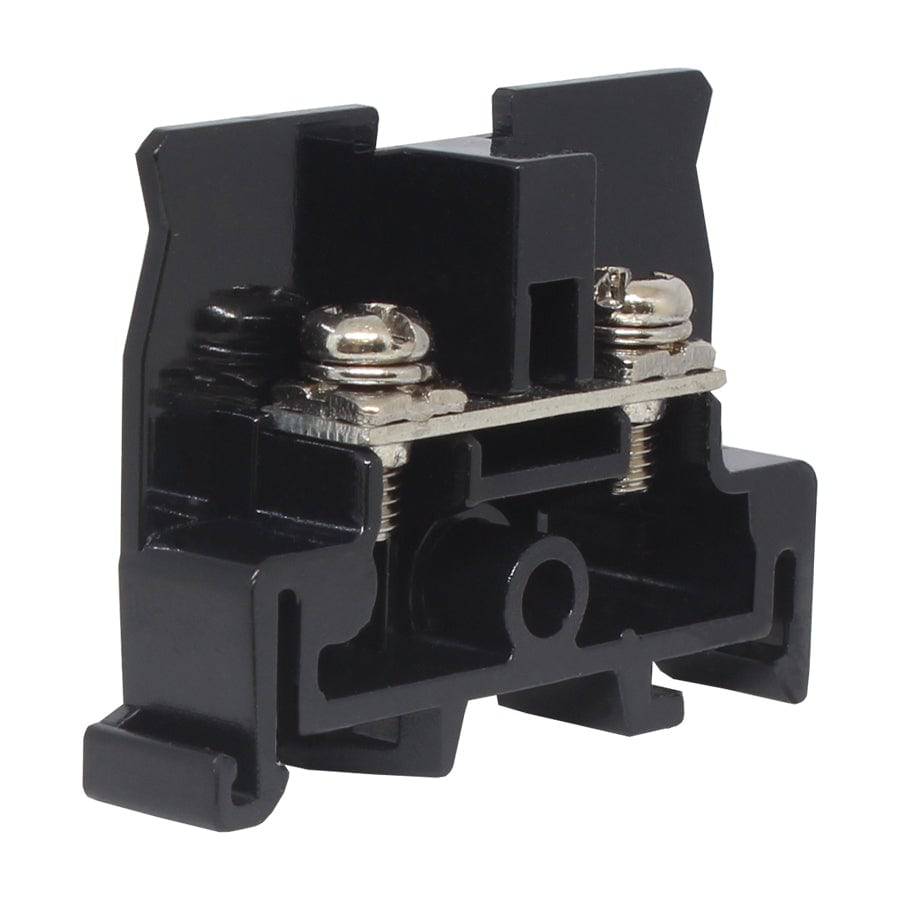

Чертежи и подробные изображения
