Technical reference

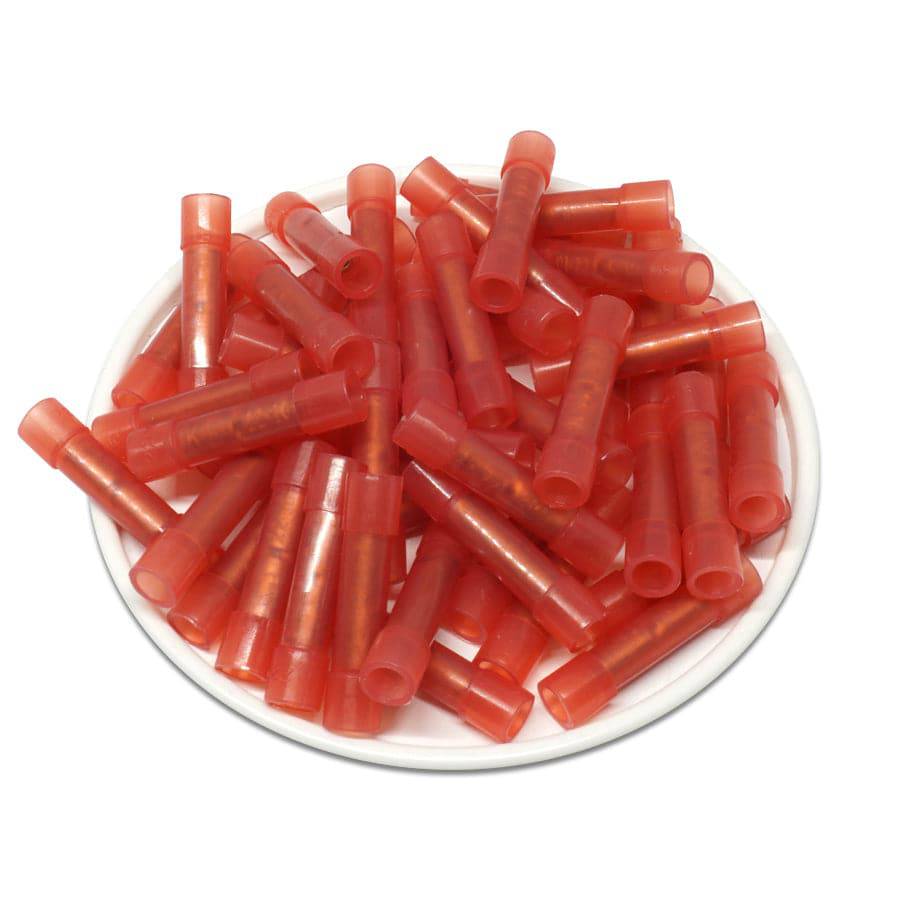

Procurement reference model: BNYFS1. Wire Size: 22-16 AWG; Color: Red; L: 25.2mm (0.99"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Size | 22-16 AWG |
| Color | Red |
| L | 25.2mm (0.99") |
| D | 4mm (0.16") |
| D1 | 2.25mm (0.089") |
| Crimp Type | Standard |
| Configuration | Flared |
| Material | Brass |
| Insulation | Nylon |
| Seam | Butted |
| Max Electrical Rating | 105°C - 300 Volts |
| Max Electrical Current | 10 AMP |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
