Technical reference

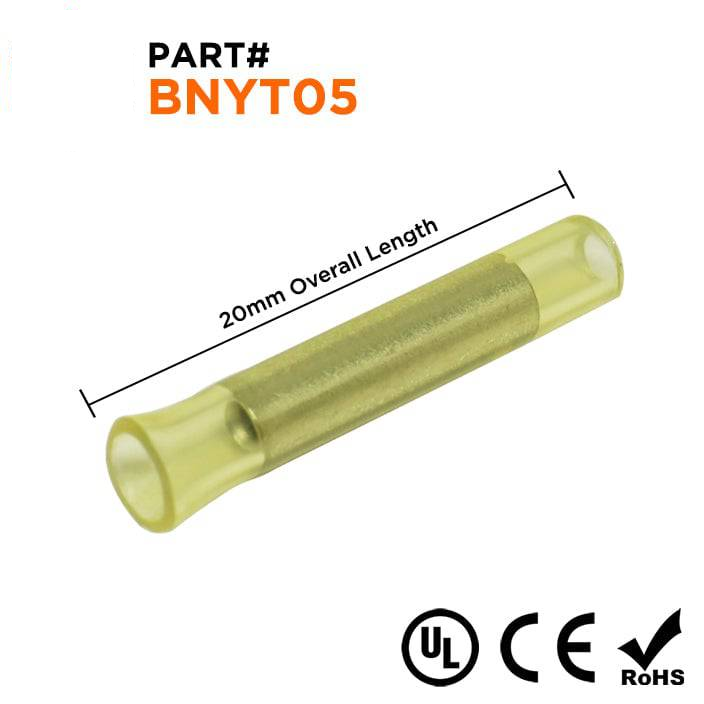

Procurement reference model: BNYT05. Wire Size: 26-22 AWG; Color: Yellow; L: 20mm (0.79"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|

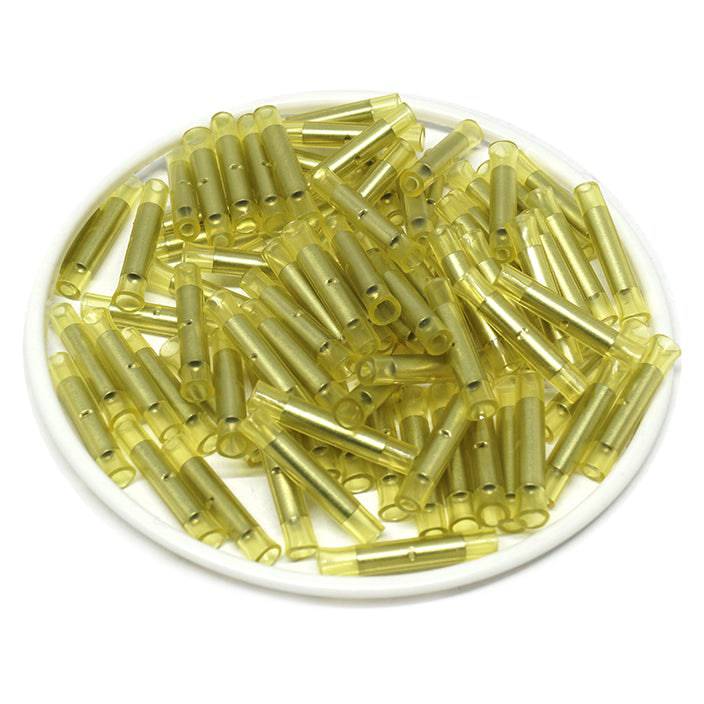

| Reference pack size | 100 · source pack reference |
| Wire Size | 26-22 AWG |
| Color | Yellow |
| L | 20mm (0.79") |
| D | 2.0mm (0.08") |
| D1 | 1.3mm (0.05") |
| Barrel | Seamless |
| Configuration | Straight |
| Material | Tin Plated Copper |
| Insulation | Nylon |
| Stripping Length (min/max) | 5-8mm Per Side |
| Max Electrical Rating | 105°C - 600 Volts |
| Max Electrical Current | 9 AMP |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
