Technical reference

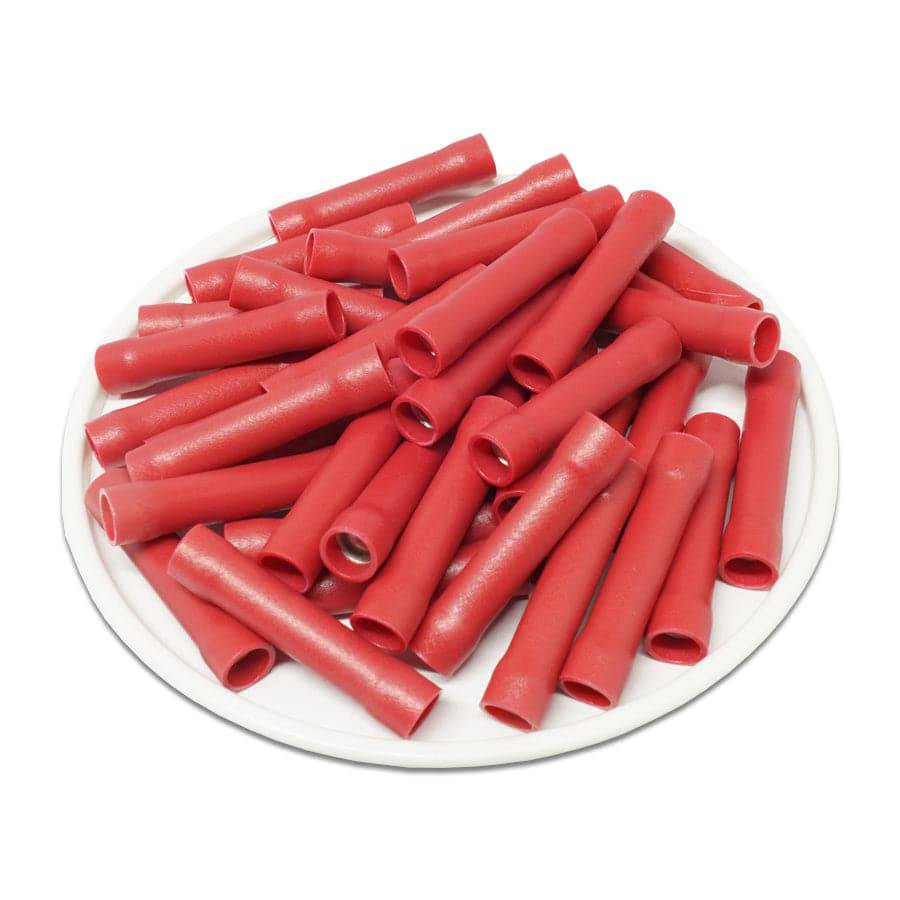

Procurement reference model: BVD1. Wire Range: 22-16 AWG; L: 24.6mm (0.97"); D: 4mm (0.16"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Range | 22-16 AWG |
| L | 24.6mm (0.97") |
| D | 4mm (0.16") |
| D1 | 1.7mm (0.07") |
| Color | Red |
| Terminal Material | Tin-Plated Copper |
| Insulation Material | Vinyl |
| Configuration | Flared |
| Max Electrical Rating | 600 Volts (105 o C) |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
