Technical reference

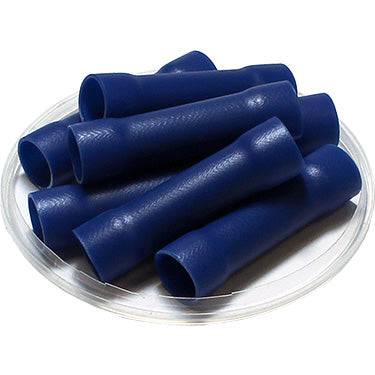

Procurement reference model: BVT14. Wire Size: 16-14 AWG; Color: Blue; L: 45mm (1.80"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 1 · source pack reference |
| Wire Size | 16-14 AWG |
| Color | Blue |
| L | 45mm (1.80") |
| D | 10.5mm (0.41") |
| D1 | 5.9mm (0.23") |
| Barrel | Butted Seam |
| Configuration | Flared |
| Material | Tin Plated Copper |
| Insulation | Vinyl |
| Max Electrical Rating | 75°C - 600 Volts |
| Max Electrical Current | 95 AMP |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
