Technical reference

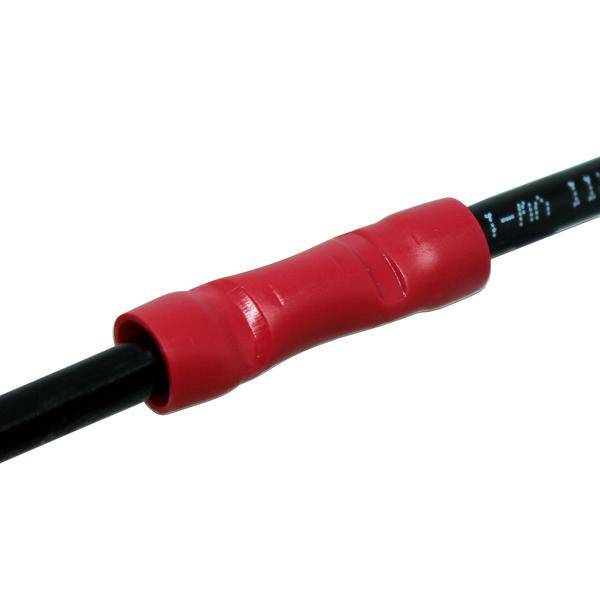

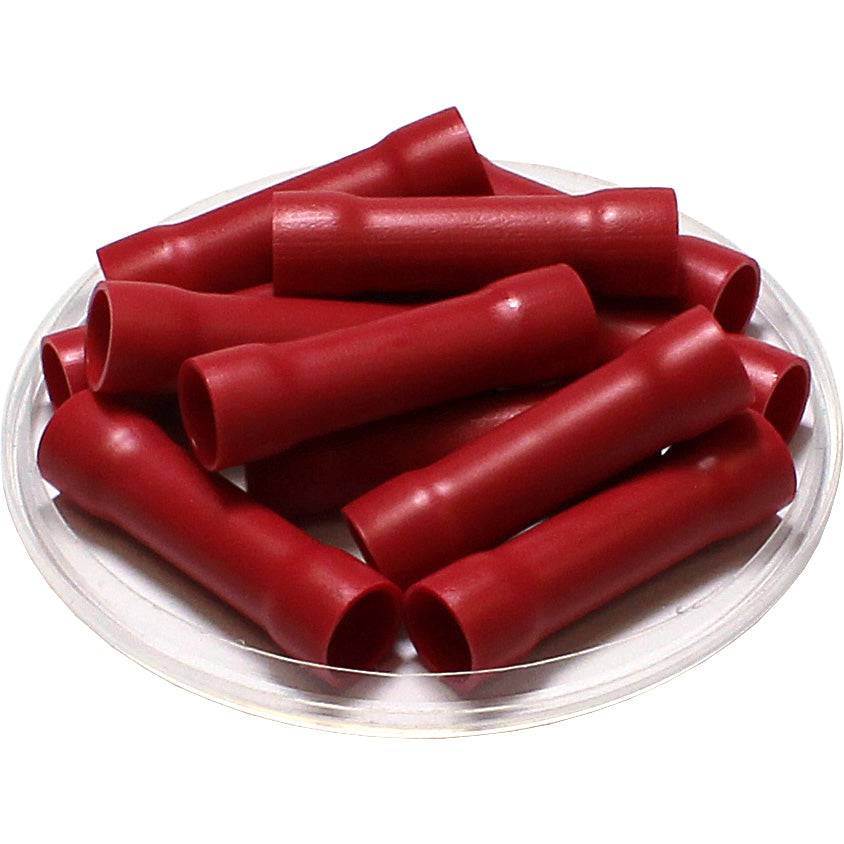

Procurement reference model: BVT8. Wire Size: 8 AWG; Color: Red; L: 35.5mm (1.34"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 25 · source pack reference |
| Wire Size | 8 AWG |
| Color | Red |
| L | 35.5mm (1.34") |
| D | 8.5mm (0.34") |
| D1 | 4.5mm (0.18") |
| Barrel | Butted Seam |
| Configuration | Flared |
| Material | Tin Plated Copper |
| Insulation | Vinyl |
| Max Electrical Rating | 75°C - 600 Volts |
| Max Electrical Current | 70 AMP |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
